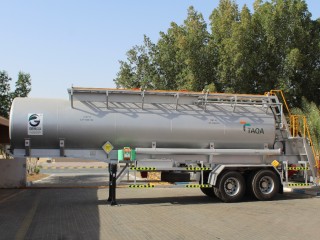

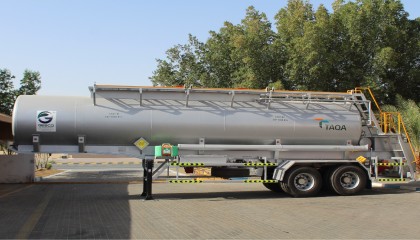

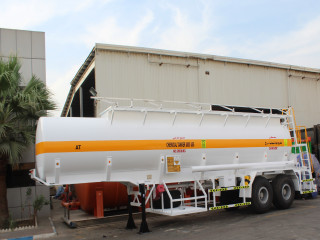

6000 USG ACID TANKER TRAILER

1. Capacity – 6000 USG – Two Compartment
2. Man hole – 2x20” diameter – Hinged type

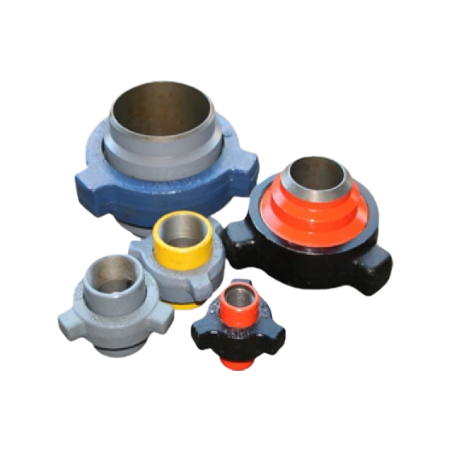

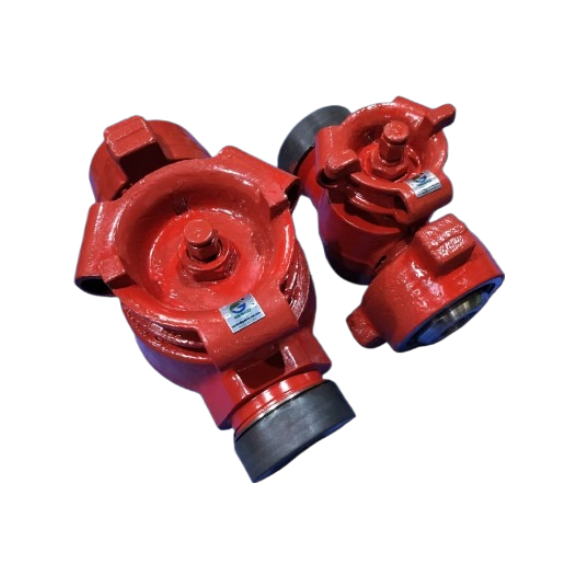

3. 4” – Fill line with Butterfly Valve with Fig 206 / 207 Unions

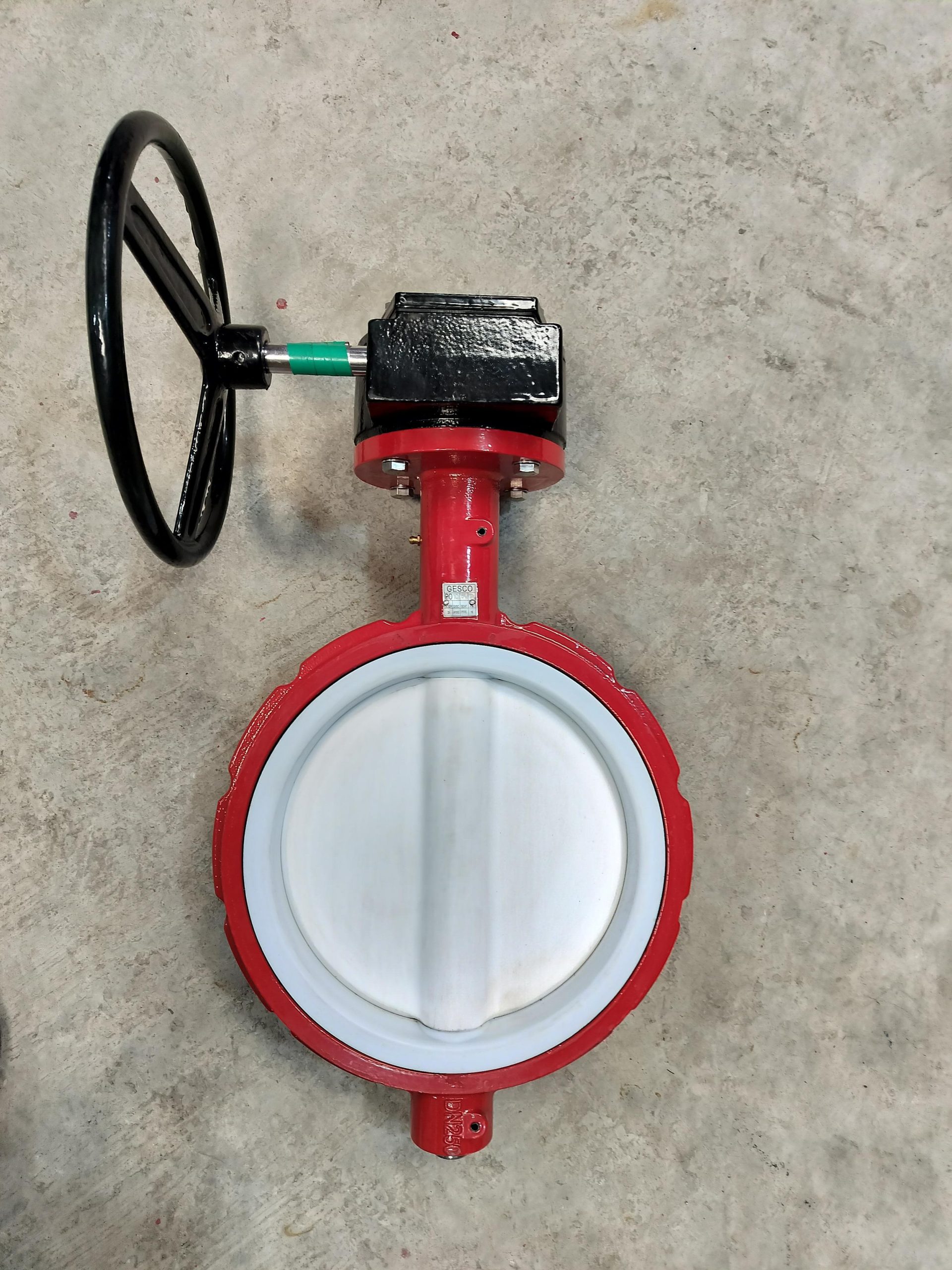

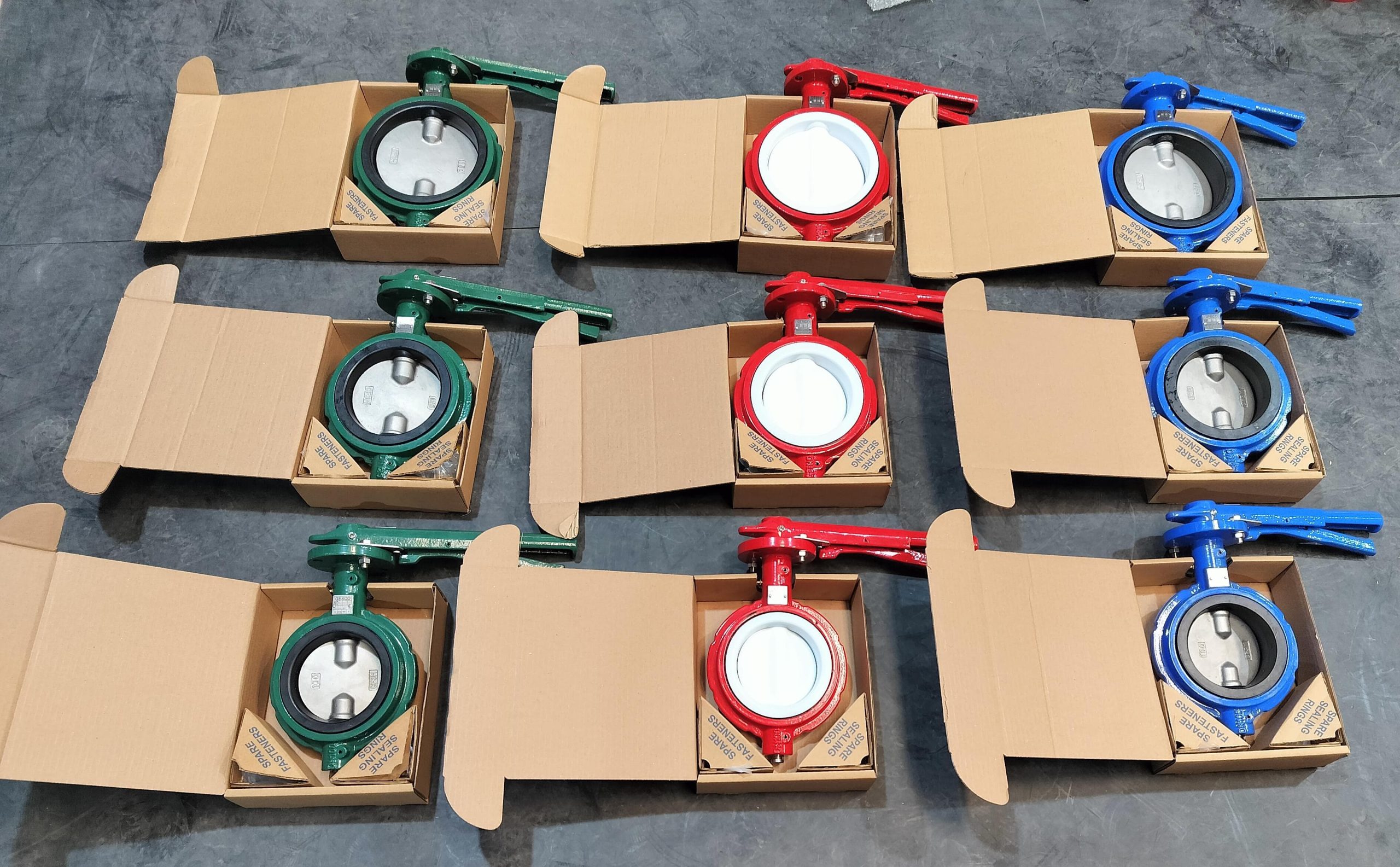

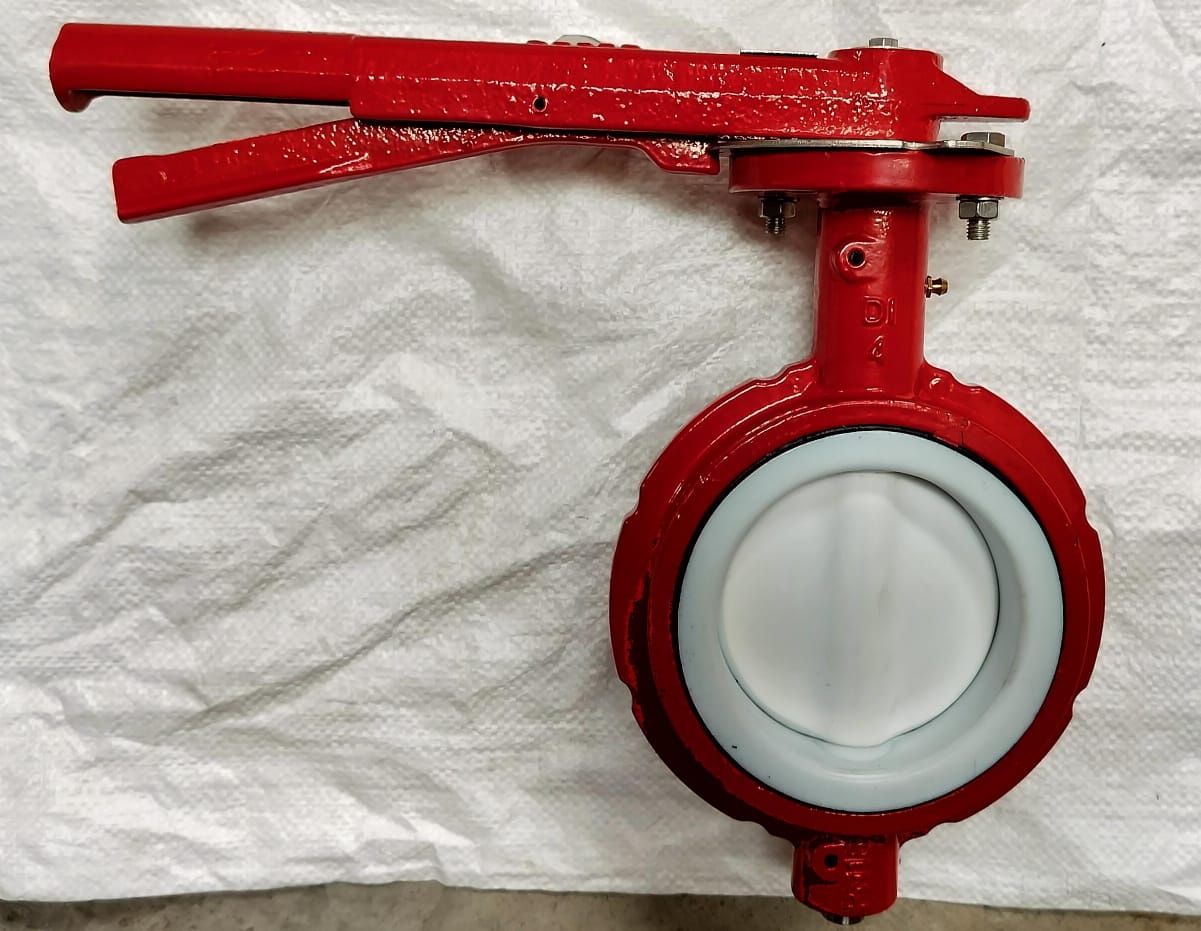

4. Tanker Discharge – 6” manifold at rear with 2 nos. 4” outlet with provision to isolation each compartment All the valves are butterfly sandwich type and MOC to suite HCL 32% (complete Teflon coated) Discharge line to be terminated with FIG 207/206 unions
5. Vent line – 2” – From top of tank - Connected to scrubber tank at rear through PVC pipes/valves
6. Axle 2x16 Ton – VB – Normal Track – Mechanical suspension
7. 315/80 R 22.5” Tyre – with disc rims
8. 2 Line Air brake system – With spring assisted brakes
9. King pin – 3.5”

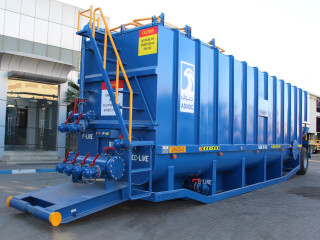

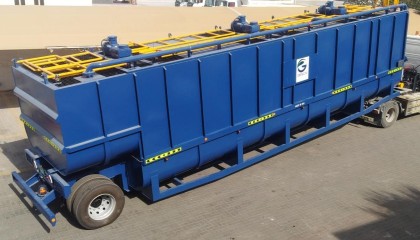

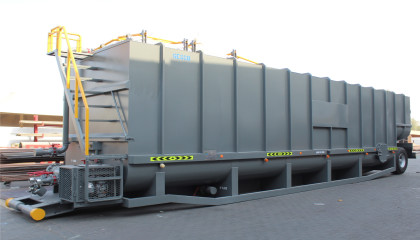

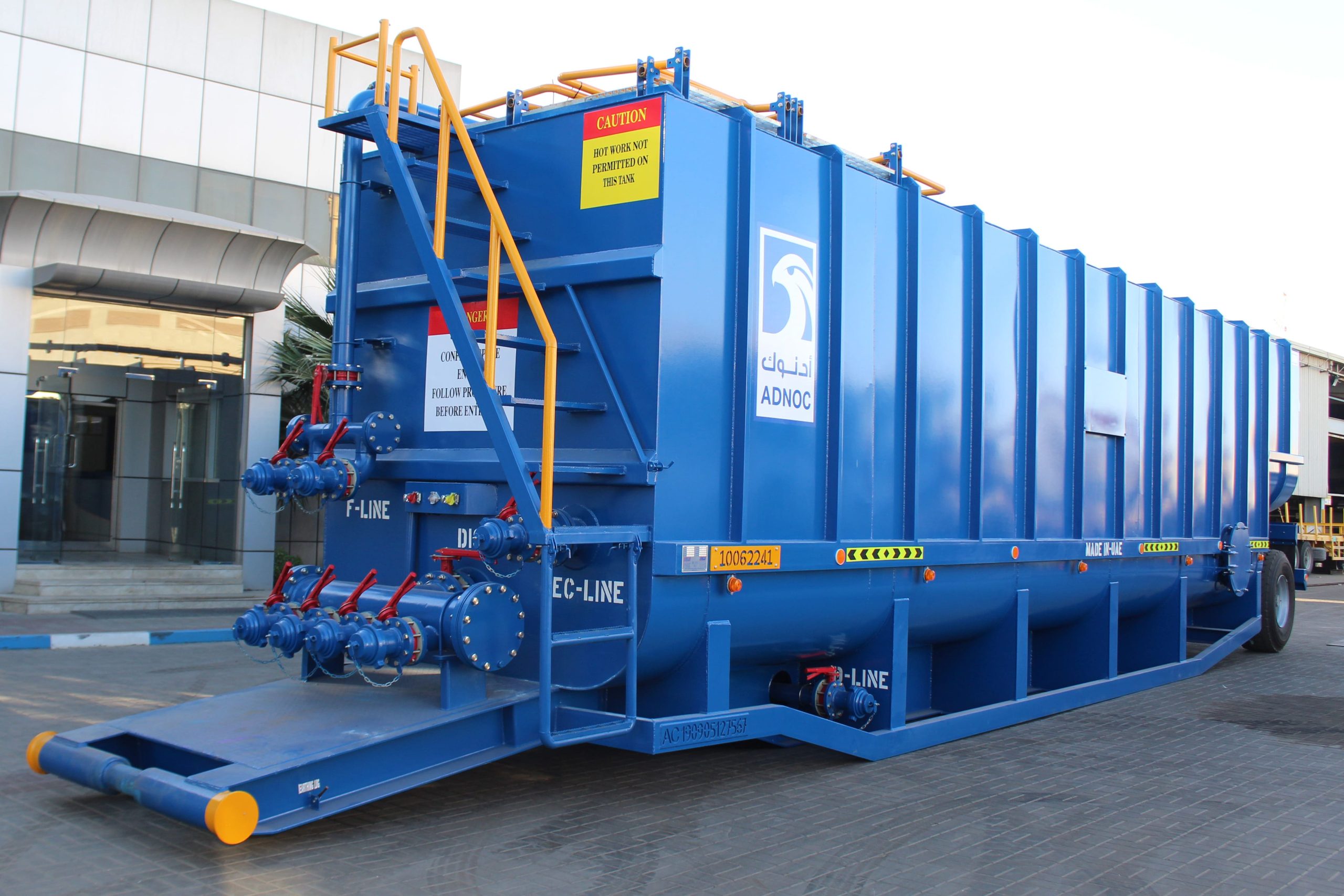

500 BBL FRAC TANK - SINGLE COMPARTMENT Suitable for SLURRY

·        4” Fill line with Butterfly Valve & FIG 206/207 unions – 1 No

·        8” Discharge manifold – with Butterfly valve and 4nos suction outlet with 4” Butterfly valve & FIG 206/207 unions. both ends of manifold with blind flanged.

·        4” Bottom drain line with Butterfly Valve & FIG 206/207 union – 1 No. 4” Overfill/Vent line with FIG 206/207 union – 1 No. at rear

·        Axle 1x12 ton – VB – Normal track – Mechanical suspension

·        Tires – 11 r 22.5” – with disc rims – 4 nos.

·        Ex proof |Agitator motor with control panel

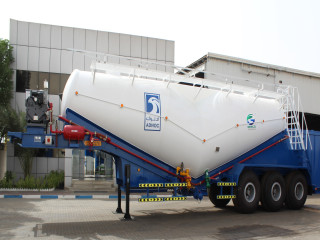

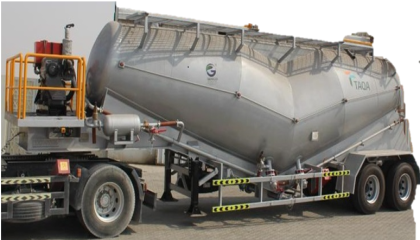

1000 CFT - CEMENT BANANA BULKER - U STAMP

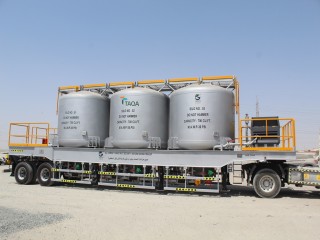

3X700 CFT - TRIPOD BULKER TRAILER - U STAMP

·        Tank Material – SA 516 Gr. 70 / EQV

·        Design code = ASME Sec VIII – Fabrication & Sec IX for welding

·        Working pressure 2 bar at 70 deg C Aeration line = 2” with Check valves/Ball valves & unions

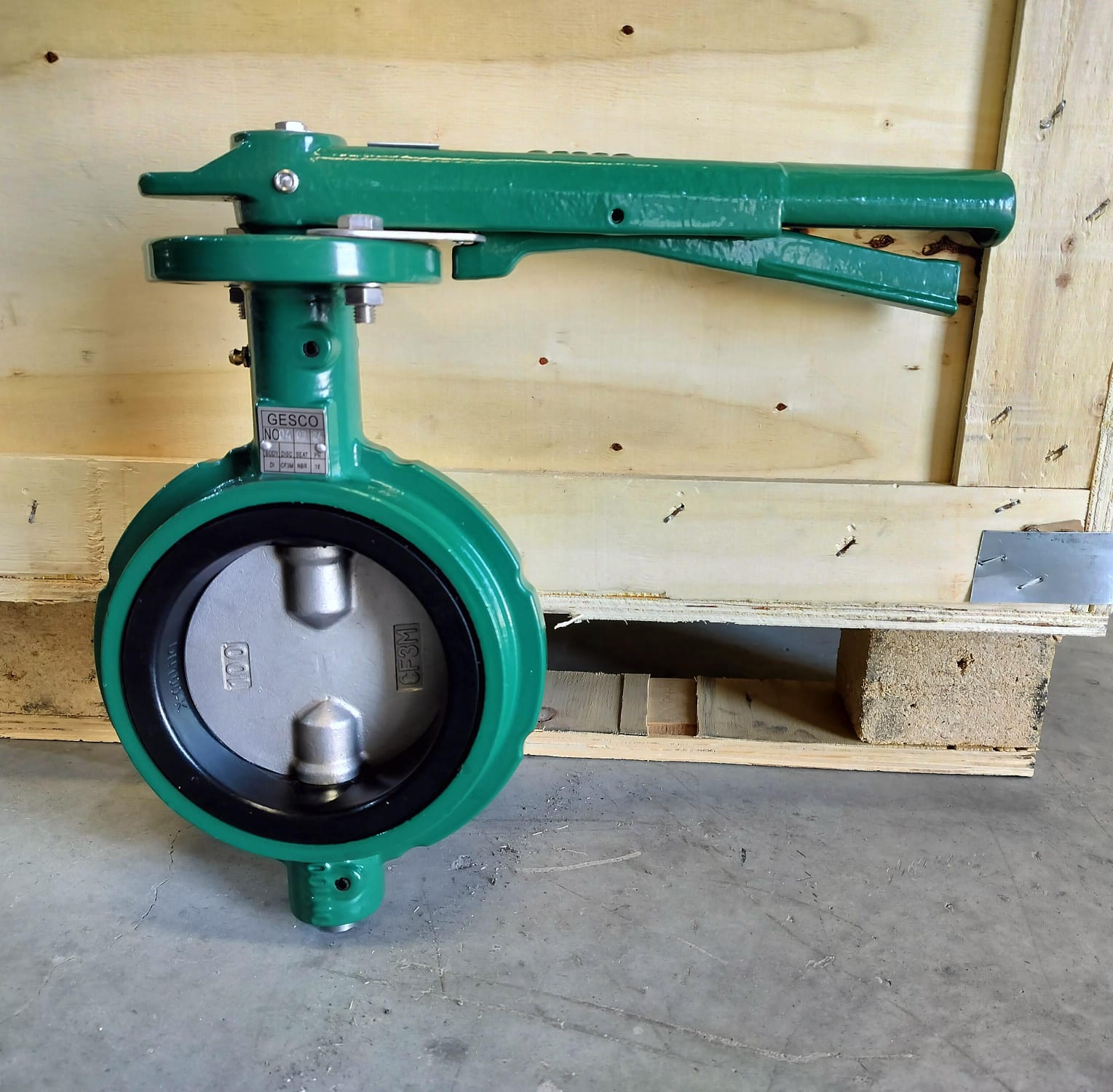

·        Fill (Inlet) = 5” – With GESCO butterfly valve & 206 Unions

·        Discharge (Outlet) = 5” – With GESCO butterfly valve & 206 Unions

·        Vent = 4” - With GESCO butterfly valve & 206 Unions

·        Manway = 20” – 1 No. – On each silo

·        2” PRV valves – 1 No. on each silo – UV Stamped – Aquatrol

·        Compressor - Gardner Denver Oil Free Screw Compressor – Bulk line with 4 Cylinder Deutz Diesel Engine

·        Axle - 2x16 Wide Track – high mount Bogie axle

500 BBL CYLIDRICAL MIXING TANK WITH EXPLOSION PROOF MOTOR

·        Compartment – Single compartment

·        Shape: Cylindrical

·        Type – Horizontal Storage Tank – Skid Mounted

·        4” Fill line – with ball valve & Union

·        8” outlet – will be blind flanged – 1 Nos.

·        4” Suction line with ball valve & 206 Union – 1 Nos

·        4” recirculation line with ball valve & 206 Union – 1 Nos

·        20” Manway

·        Lifting pad eye – 4 Nos

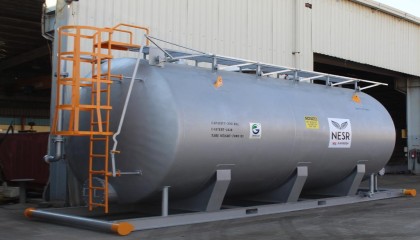

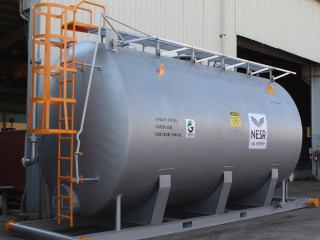

500 BBL CYLIDRICAL WATER STORAGE TANK

·        Capacity: 500 BBL + 5% Ullage

·        Application: Water

·        Shape: Cylindrical – Skid mounted – Horizontal

·        Discharge manifold – 8” Manifold with Butterfly Valve & Hammer union

·        Fill line – 4” with Butterfly Valve & FIG 207/206 union – 01 No.

·        Drain – 4” line with Butterfly valve & FIG 207/206 union – 01 No.

·        Overfill/Vent – 4” line with FIG 206/207 union – 01 No.

·        Manway – 02 Nos. (At top)

·        GI Grating for walkway with foldable Aluminum hand rail

·        Lifting pad eye at top of the tank – 4nos.

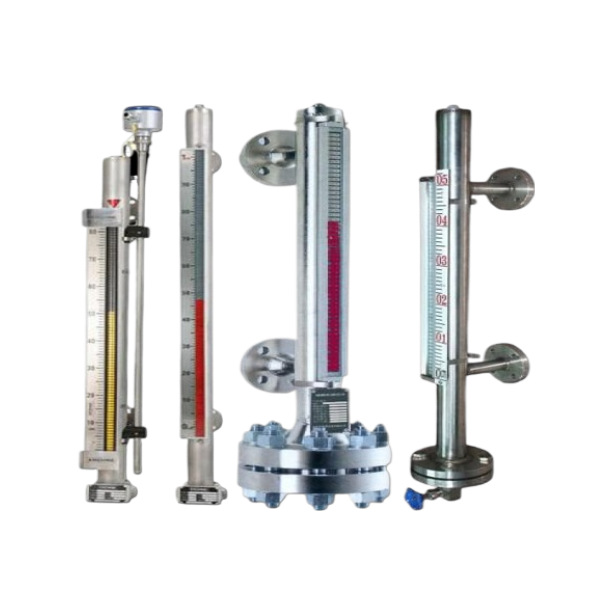

·        Calibrated Glass Level Indicator – 1 No.

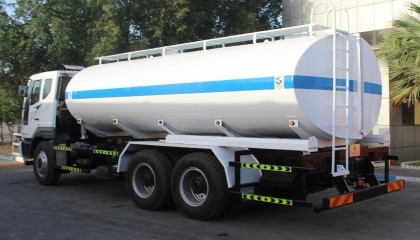

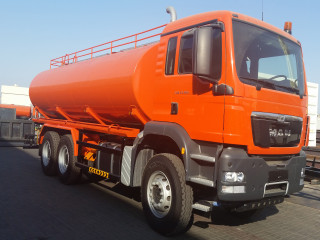

5000 IG Water Tanker

·        Shape – Elliptical

·        Compartment – Single

·        Pump & Engine – 3” Koshin water Pump with Robin Petrol Engine – JAPAN

·        Walkway – G.I. Grating with hand rail. Side & Rear anti under run protection.

·        20” GI Manholes – 2 Nos.

·        Level indicator at rear of the tank - 1 Nos

·        Mudguards with Rubber mud flaps for rear wheels.

60000 litters FUEL TANKER TRAILER

• Shape – Double D

• Compartment – Single Compartment

• Loading type – Top loading through Manhole

• 4”, Mechanical lever operated control bottom valve

• 20” Manway

• 3” Gravity discharge with Ball valve – 1 No.

• Bogie Axle – 2X16 Ton Mechanical suspension

• Tyres – 12.00 R24"

• Brakes – 2 Line air brake system

• King pin 3.5” - SAE standard Interchangeable to 2”

• Landing leg –mechanical operated

• Full length valance and drain collector

190BBL HYDROCHLORIC ACID TANKER TRAILER

·        Compartment - Two Compartment

·        Tank Material = A36/275 Jr/Eqv

·        Man hole – 2x20” diameter – Hinged type

·        4” Separate Fill Line with Butterfly Valve for each compartment

·        Tanker Discharge – 6” manifold at rear with 2 nos. 4” outlet with provision to isolation each compartment

·        Vent line – 2” – From top of tank - Connected to scrubber tank at rear through PVC pipes/valves

·        Axle 2x16 Ton – Bogie – Mechanical suspension

·        11R 22.5 – Tyres – Bridgestone – with Disc rims

·        2 Line Air brake system – With spring assisted brakes – WABCO

·        King pin – 3.5” JOST / Eqv

·        Landing leg – Two speed – Manually operated

·        FRP Grating – Right hand side of the manhole with 1 MTR height foldable design aluminum handrail

·        Internal - Derakane lining

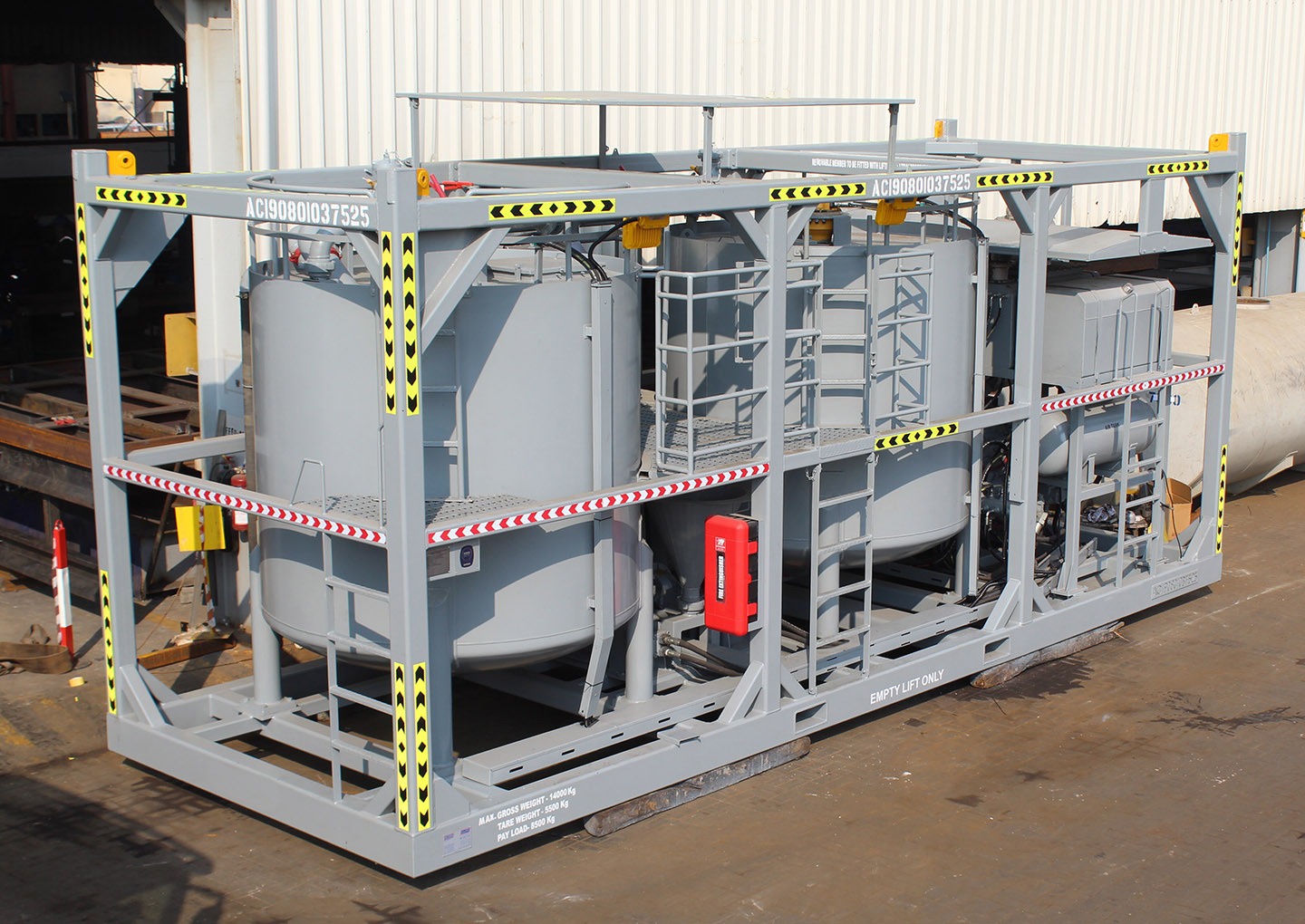

2X50 BBL SKID MOUNTED BATCH MIXER

·        Overall Dimensions: Width = 2.30 Meter, Height = 2.60 Meter, Length = 7.50 Meter

·        Approximate weight – 13.0 Ton

·        Hydraulic power pack – Detroit Diesel Engine

·        C-Pump – 4X5X14 - Double Life (USA) or Forum – Hydraulic driven

·        Pumps – Double Life - US – Hydraulic

·        Motors – Viljon – Hydraulic – Two for C-pumps

·        Motors – Poclain - Two for Agitators

·        Control panel with working platform – Elevated – With roof

·        4” Valve - Dry cement delivery lines with inlet at the base of the skid

·        5” Valve - Water supply/cement slurry recirculation lines

·        6” Valve - Bottom outlet

·        4” Valve - Tank drain and suction from outside tank
