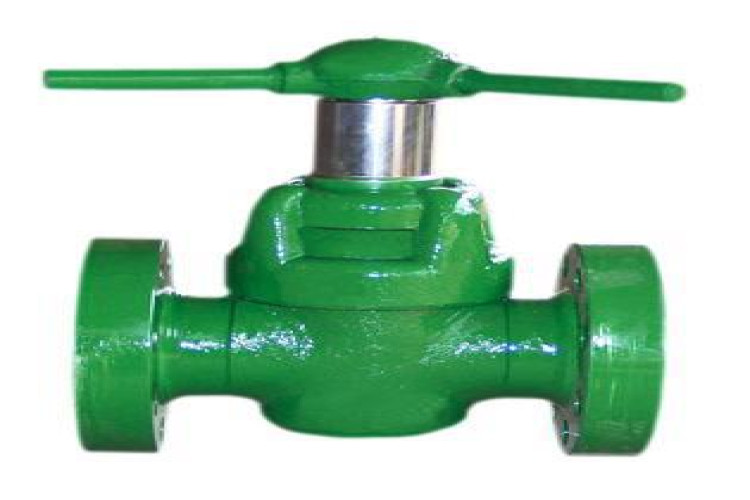

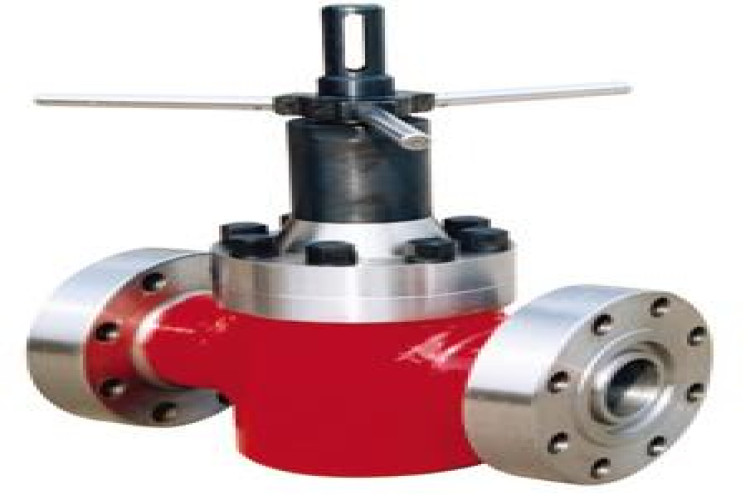

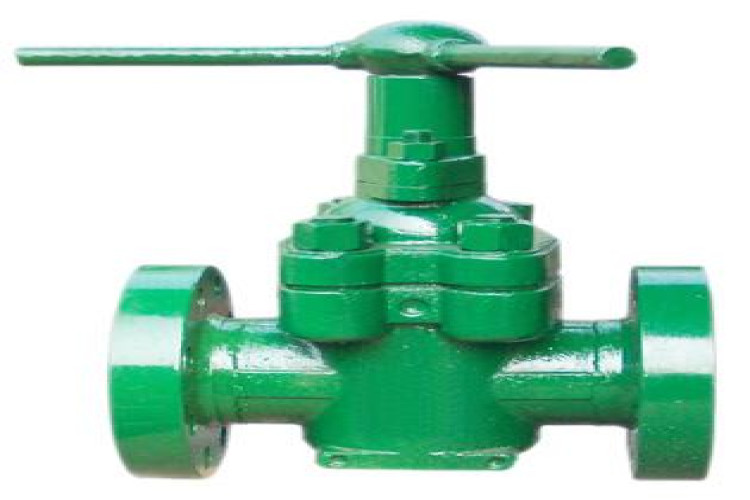

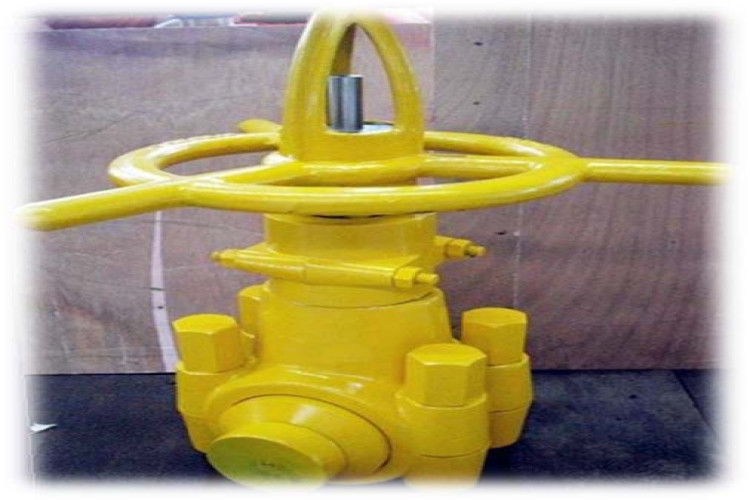

MUD GATE VALVES
GESCO Mud Gate Valve is equivalent to well known international brands, which is mainly used for mud, cement, fracturing and water service and are easy to operate and simple to maintain. This series of mud gate valve is rising stem, solid gate with resilient seals with superior design and precision workmanship to meet the working request. GESCO mud gate valves are identical to existing well known brands in size and fully interchangeable spare parts can be provided.
Specifications:
- Designed specifically for abrasive and erosive condition
- Gates available: Nickel-plated carbon steel, Mone], Aluminum Bronze or Stainless Steel
- Stainless or Carbon Steel Inserts with Nitrile or HNBR Elastomer
- Connection: Flange/Thread/Butt weld/Hammer Union
- Pressure ratings up to 5,000 psi in 2", 3", 4", 5" x 4" and 6" x 4" Valve Sizes
- Working Temperature: -46°C ~ + 121°C
- Sour Service Models to NACE MR-01-75
- Specification Level: PSLl ~ PSL3
- Performance Requirement: PRl ~ PR2
- Factory Pressure Tested in Accordance with API 6A
Application:
- Mud pump line, standpipe manifolds, oil and gas pipelines, abrasive drilling mud system, corrosive water flood lines, cementing services, wellheads, well treating chemicals.
