GESCO Air Grip Unions are widely used in the pipelines with low -pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system. Size varies from 4″to 26″ available, and air tube can be customized up to 46″.

Specifications:

Specification Details
Working medium Oil based mud, water-based mud, or other drilling fluid
Medium temperature -45°C~55°C
Reconversion time when deflated 1-3 Seconds
Line pressure up to 150psi and tube pressure is Max. 50psi above than line pressure

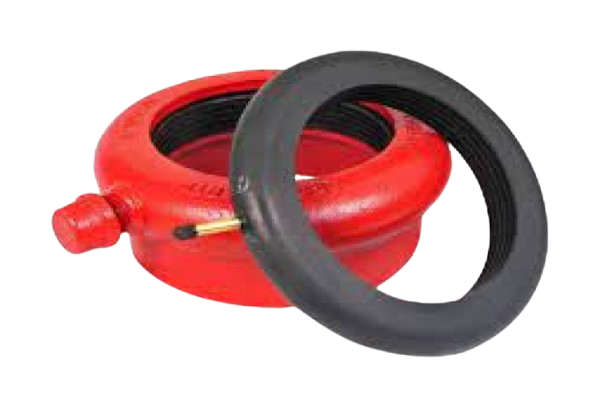

Structure Casting Steel Shell and Air Inflatable Tube (NBR)
Key Features
  • Fast, easy make-up without close alignment
  • Carbon steel body welds in place on mud tanks, with NBR air tube for sealing even if the pipe is not perfectly aligned
  • Allows pipe expansion or misalignment up to 14°
  • No nuts, bolts, or wrenches required

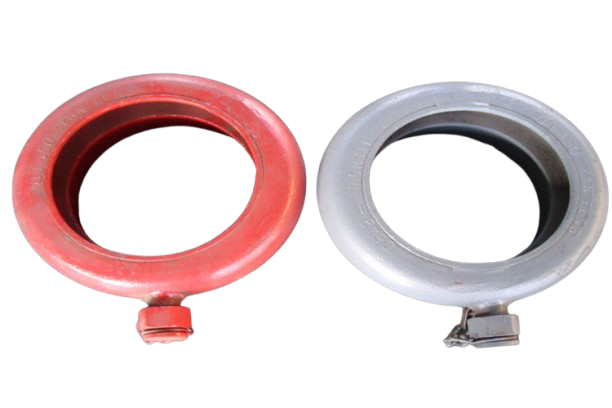

  • Grey or Red Nut & Sub, customized color & logo available
