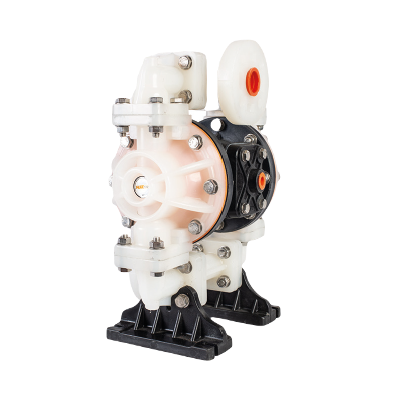

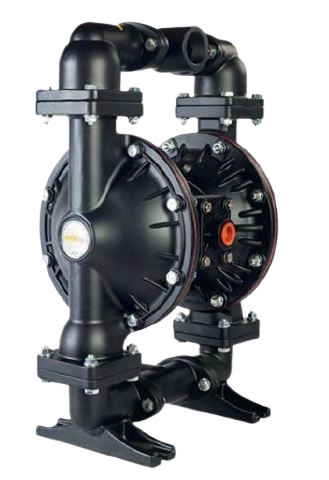

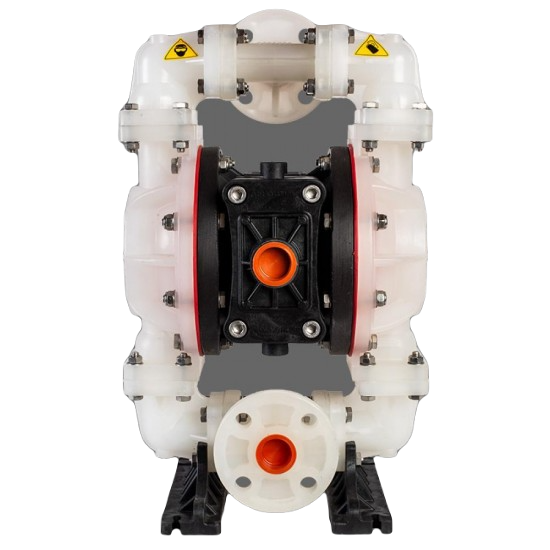

• VP05PP Series Plastic Body Pump

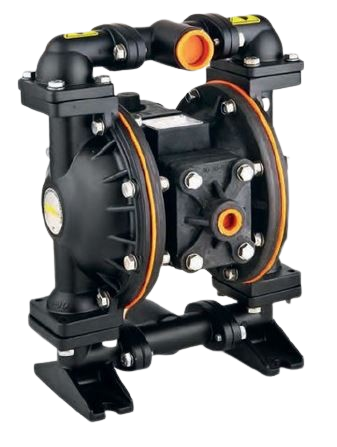

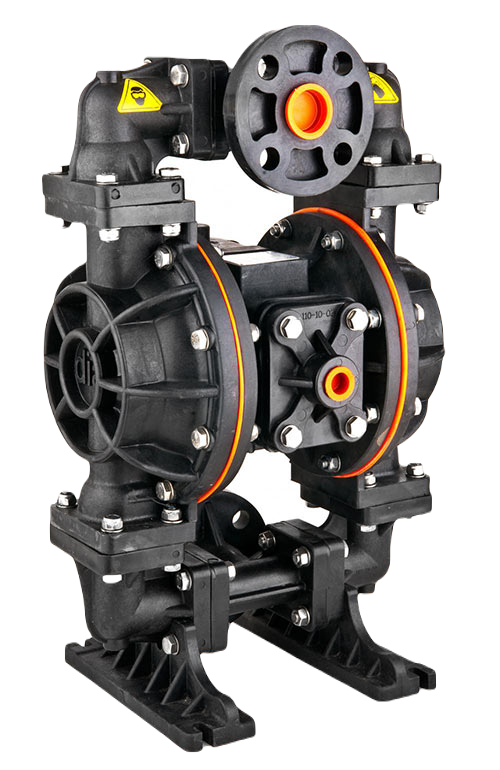

• VP10PP Series Plastic Body Pump

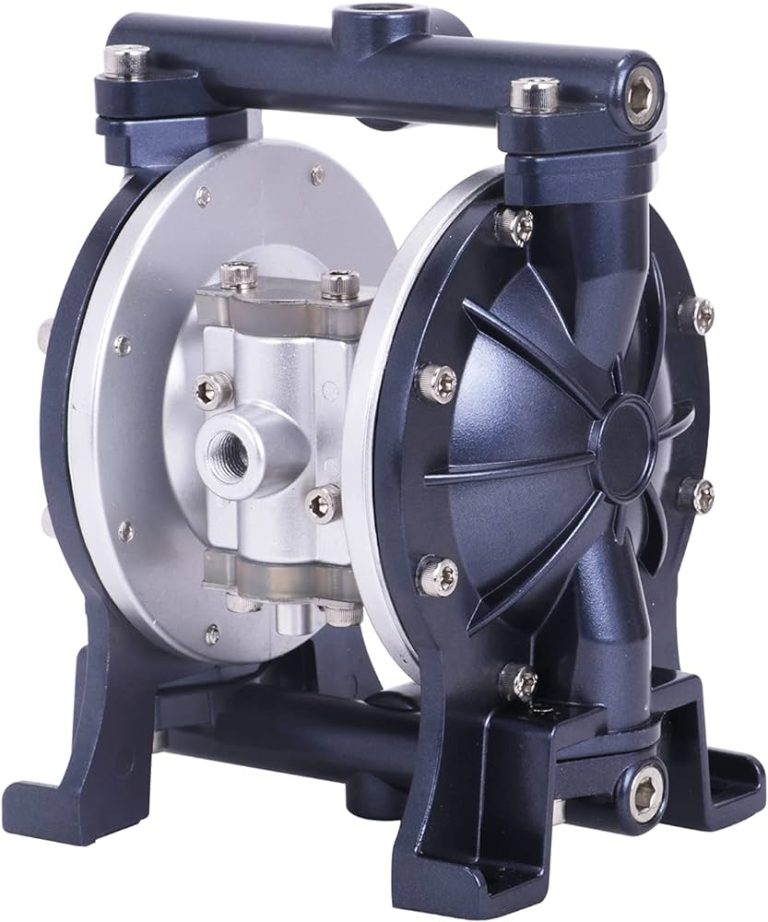

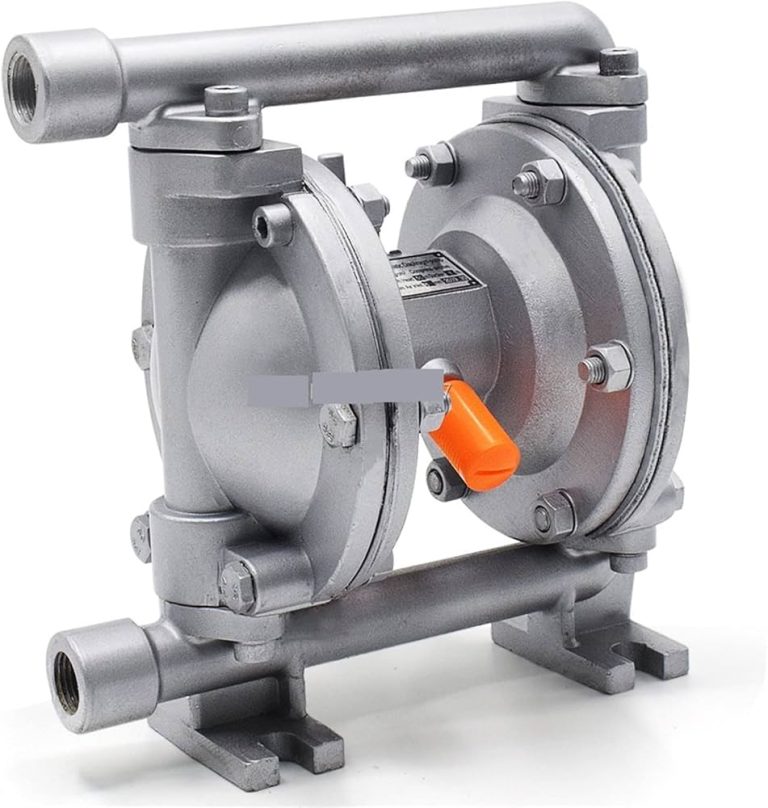

• VP10AL Metallic Body Pump
• VP15AL Metallic Body Pump.

Key Features:

• Solid particles may pass through the pump.
• Maintenance cost is low
• Liquid flowrate can also be adjusted when the air inlet pressure of the pump is adjusted.
• The pump’s air valve and pilot valve repair kits can be repaired without dissembling the pump.
• It has the feature of working dry
• The suction depth of the pump is 6 meters.

Application Areas

• Wastewater treatment
• Textile
• Packaging
• Chemical Industry
• Automative
• Food Industry
• Paint Industry
• Mining-Energy
• Marine
• Machine-Automation

• Max. Capacity Fluid: 55l/min
• Inlet-Outlet Max: 3/4″
• Fluid Discharge: 7 bar
• Body Material Air: Polypropylene
• Inlet Size Solid: 1/4″
• Particle Size Dry: 3 mm
• Suction Depth Max: 6 m
• Air Pressure: 7 bar
• Diaphragm Options: Santoprene, Neoprene, Buna-N, EPDM, Teflon, Viton
• Ball Options: Santoprene, Neoprene, Buna-N, EPDM, Teflon, Viton
• Ball Seat Options: Santoprene, Neoprene, Buna-N, EPDM, Teflon, Viton

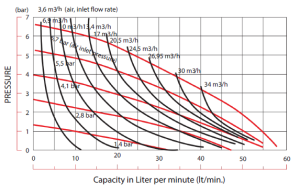

Diaphragm Pumps Performance Curves

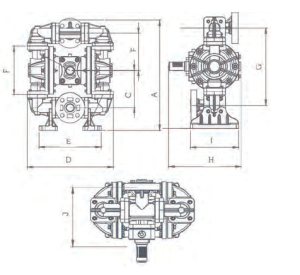

Pump External Dimensions
