HOSE LOOPS

.

.

HOSE LOOPS

HOSE LOOPS

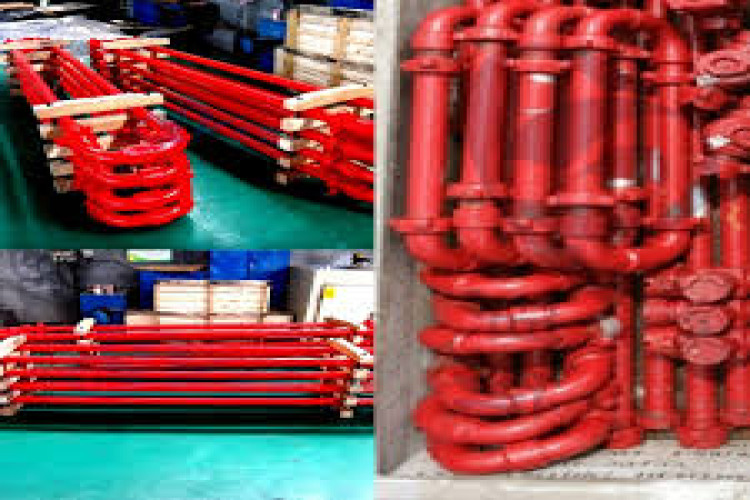

GESCO can provide high pressure cementing and circulating hoses (Long sweep hose), incorporated swivel joints of forged alloy steel with superior quality hardened ball races and high-pressure type packing units. It can handle a complete range of fluids up to 15000 psi, all materials meeting the API 16C standard. Recommended for high pressure flowline, cementing and circulating lines for standard and sour gas services.

Specifications:

Specification Details
Working Pressure 6000-15000 psi
Nominal Size 1″ to 4″
Spec. size 2″ x 10″, 2″ x 12″, 3″ x 12″
Working Temperature -29-121 deg C (PU)
Medium Standard Trim or H2S
Standard API Spec 16C or NACE MR 0175 LS-15/LSG-15 Long sweep hose
Union
  • One wing union and one each style 50 and style 10 long sweep swivel joint with integral wing union end LS/LSG-10
  • Four wing union and two style SO or style 10 long sweep swivel joints with integral wing union ends.
