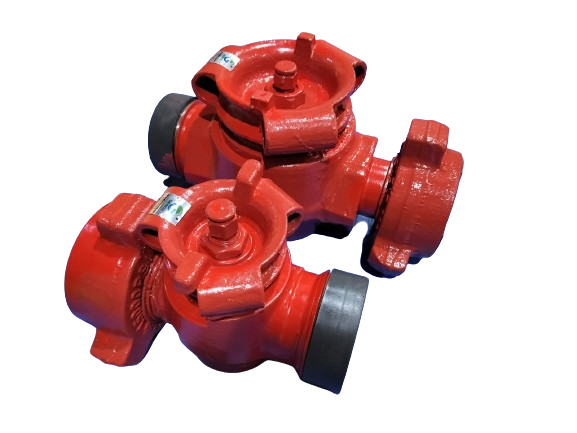

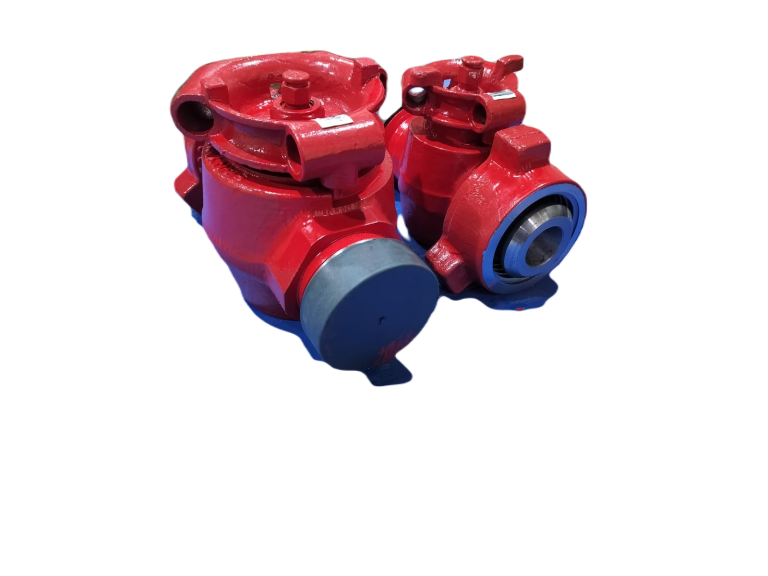

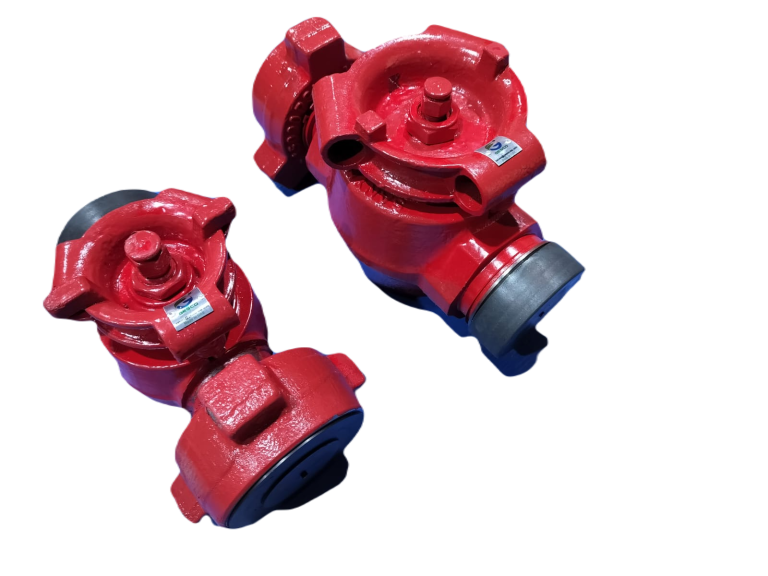

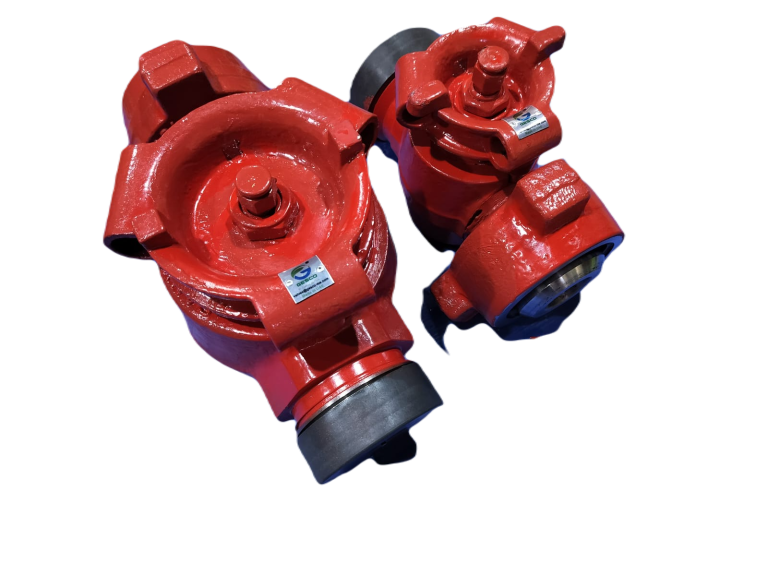

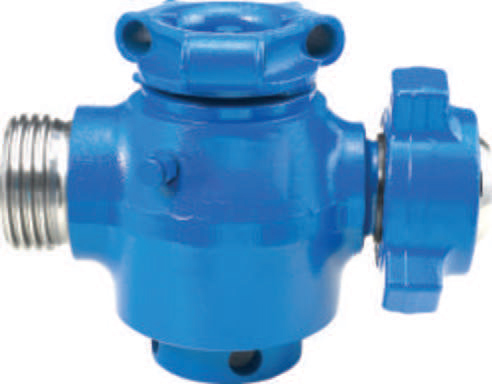

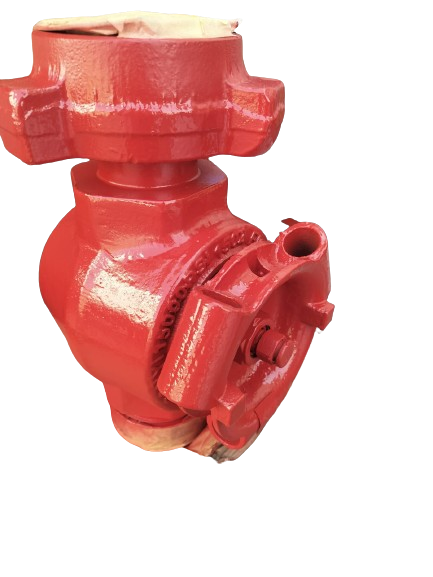

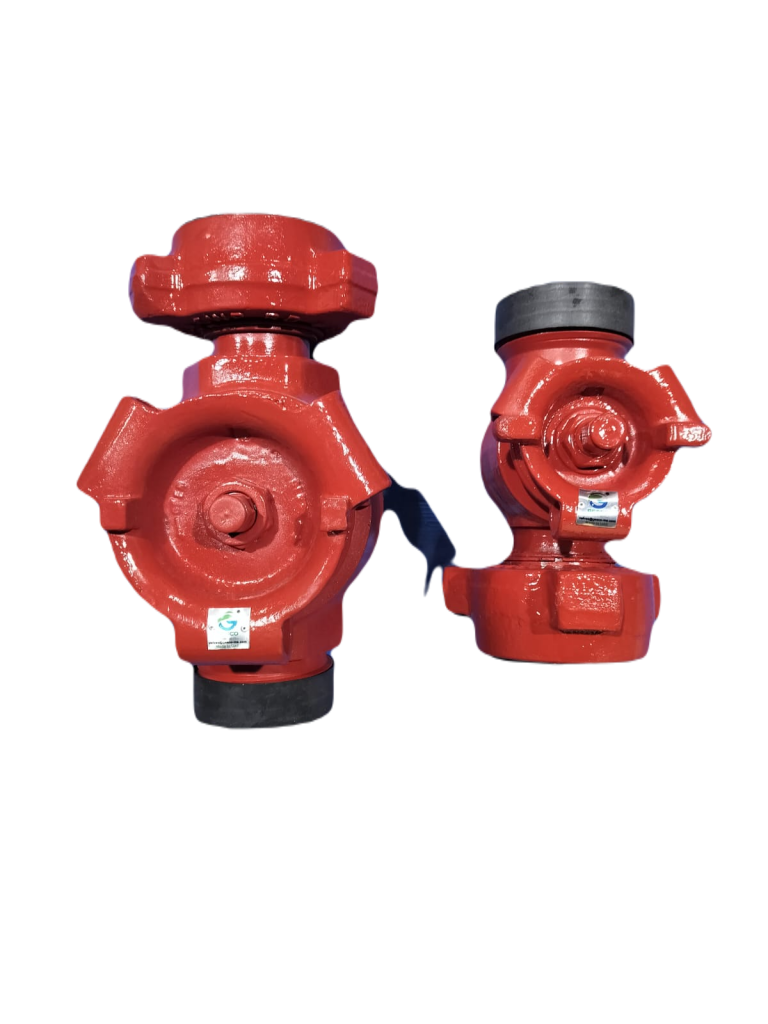

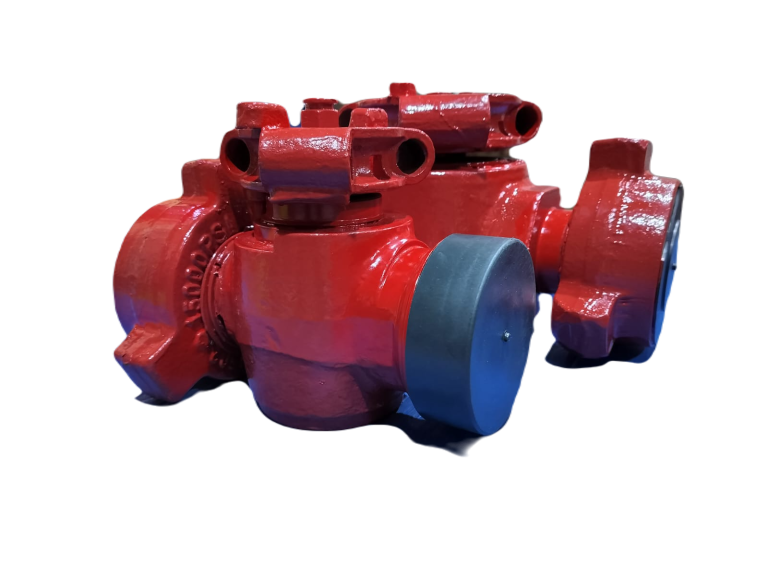

GESCO provides Plug Valves with standard union connections, and a standard service rating up to 15000 PSI NSCWP, size from 1″ to 3″.
ULT Plug valve provides flow control for oilfield applications such as Cementing, Fracturing, Acidizing, Coiled tubing, Sand control, and Manifold trailers. Manual, Air and Hydraulic operation available for standard, sour gas and low temperature application.
| Plug Valves | Features |
|---|---|
|
|

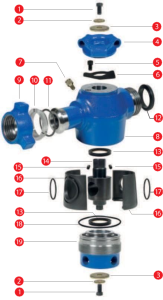

| Item No | Plug Valve Specs | Quantity |
|---|---|---|
|
||
| Assy | Plug Valve 1502 Handle Type | 1 |
| 1 | Cap Screw | 2 |
| 2 | Washer 1 (Small) | 2 |
| 3 | Washer 2 (Bigger) | 2 |
| 4 | Handle Adapter | 1 |
| 5 | Stop Bolt | 1 |
| 6 | Stop Collar | 1 |
| 7 | Grease Fitting | 1 |
| 8 | Body | 1 |
| Item No | Plug Valve Repair Kit Specs | Quantity |
|---|---|---|
|
||
| – | Repair Kit Set | – |
| 13 | Plug Seal | 2 |
| 14 | Plug | 1 |
| 16 | Insert | 2 |
| 17 | Insert O-Ring | 2 |
| 18 | Adjusting Nut O-Ring | 1 |
| Connection | Working Pressure | Test Pressure | Operation Type | Dimensions (inch) – A | Dimensions (inch) – B | Dimensions (inch) – C | Dimensions (inch) – D | Dimensions (inch) – E |
|---|---|---|---|---|---|---|---|---|
| 2X1 1502 MxF – Standard | 15,000 | 22,500 | Handle | 10.53 | 4.74 | 4.50 | 4.50 | 1.00 |
| 2X1 1502 MxF – H2S | 10,000 | 15,000 | Handle | 10.53 | 4.74 | 4.50 | 4.50 | 1.00 |
| 3X3 1502 MxF – Standard | 15,000 | 22,500 | Gear | 17.00 | 7.20 | – | 9.06 | 3.05 |
| 3X3 1502 MxF – H2S | 10,000 | 15,000 | Handle | 17.00 | 7.20 | 10.95 | 9.06 | 3.05 |
