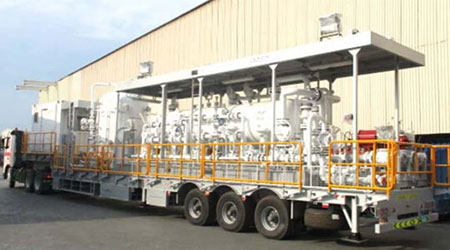

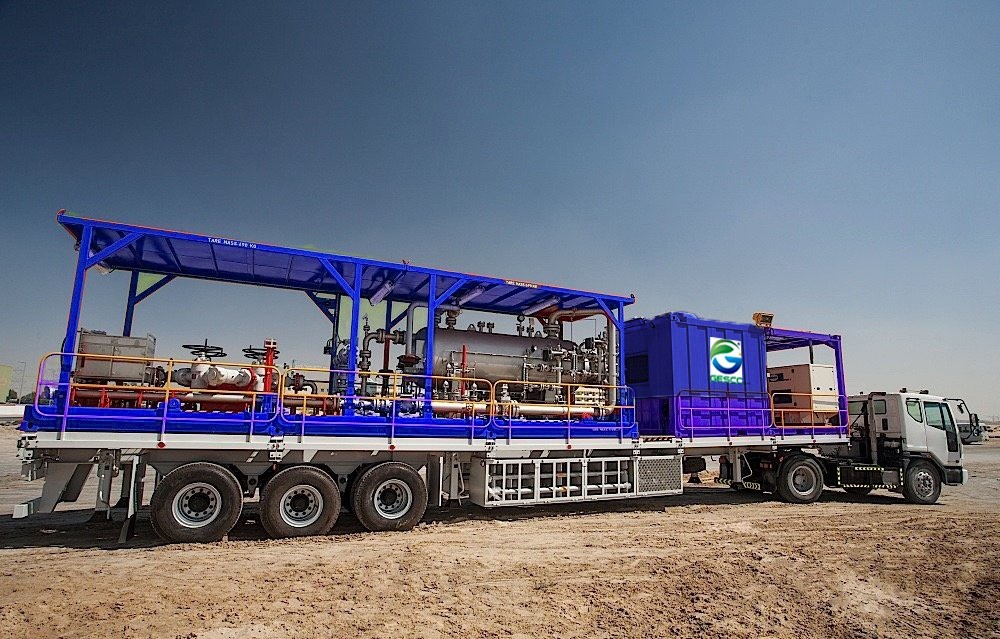

WELL TESTING PACKAGE – TRAILER MOUNTED
| Specification | Details |
|---|---|
| Description | Used for performance testing of existing or new wells, including gas composition, density, oil & water flow rate. Trailer-mounted with integrated power pack for ease of operation in utility-scarce regions. Trailer sizes range from 20 to 40 feet. |
| System Includes | Upstream pipeline, Upstream data header, Downstream pipeline, Downstream data header, Pup joints, SSV/DSV control panel, Surface safety valve with ESD, Choke manifold, Test separator skid (with gauges, transmitters, control valves, flow meters, pen recorder), Horizontal surge tank skid (as required), Data acquisition system, Laboratory room (for data & oil/chemical analysis), Power pack (diesel generator, air compressor, auxiliaries) |
| Test Pressure | 2500 PSI |
| Test Temperature | 250 °F / 120 °C |
| Flow Rate | 2000 to 30000 BBLD |
| Gas Handling | 20 to 65 MMSCFD |
| Finish | External grit blasted with SA 2.5 and three-coat polyurethane paint system |

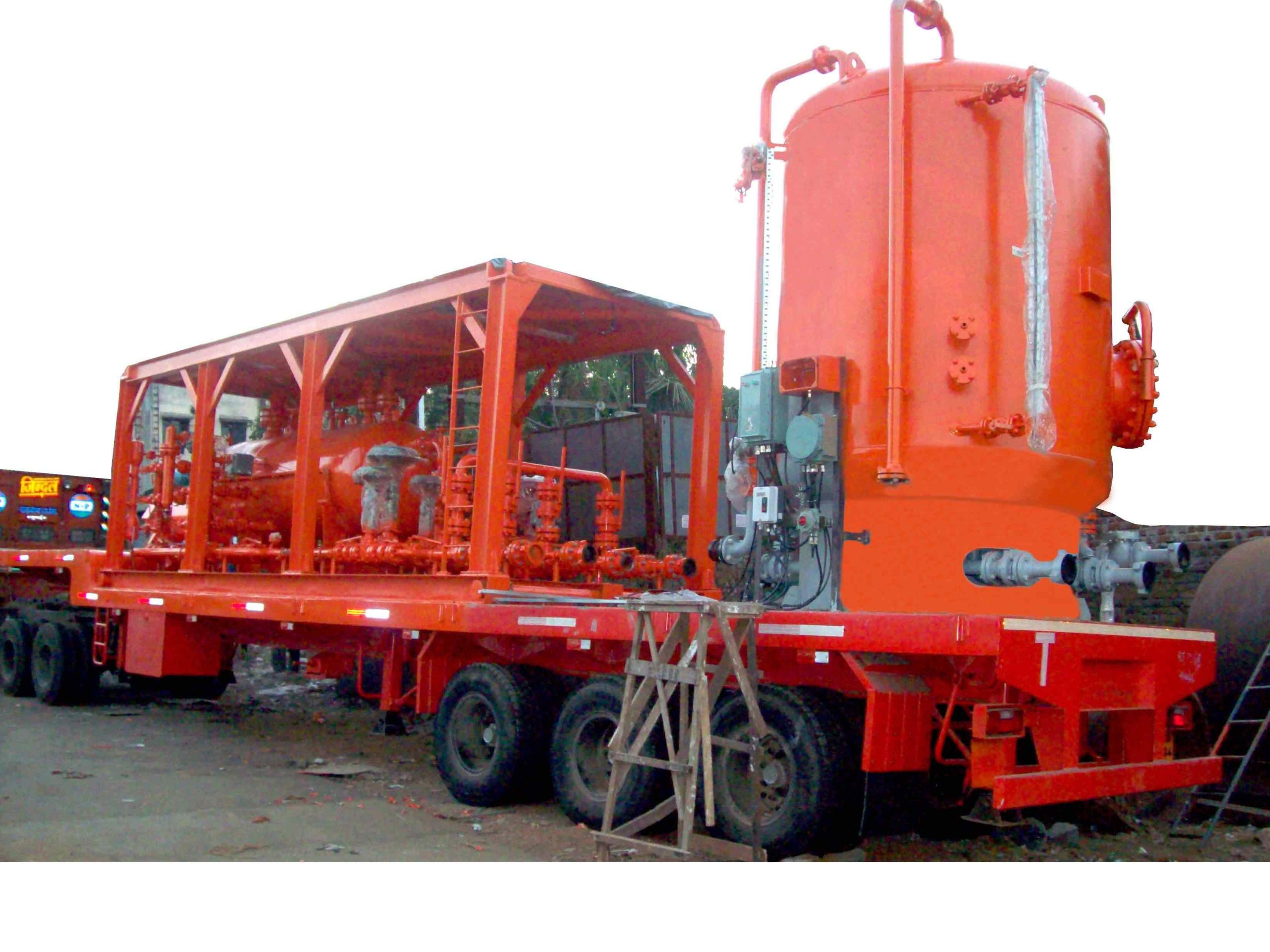

🅑 THREE PHASE SEPARATOR WITH SURGE TANK – TRAILER MOUNTED
| Specification | Details |
|---|---|
| System Includes | Upstream pipeline, Upstream data header, Downstream pipeline, Downstream data header, Pup joints, Choke manifold, Test separator skid (with gauges, transmitters, control valves, flow meters, pen recorder), Horizontal surge tank skid (as required), Oil transfer pumps |
| Test Pressure | 1440 PSI |
| Test Temperature | 250 °F / 120 °C |
| Flow Rate | 2000 to 15000 BBLD |
| Gas Handling | 20 to 65 MMSCFD |
| Finish | External grit blasted with SA 2.5 and three-coat polyurethane paint system |
