| Specification |
Details |
| Capacity |
6000 – 10000 USG |
| Shape |
Cylindrical, Elliptical, Double-D, and Customized |

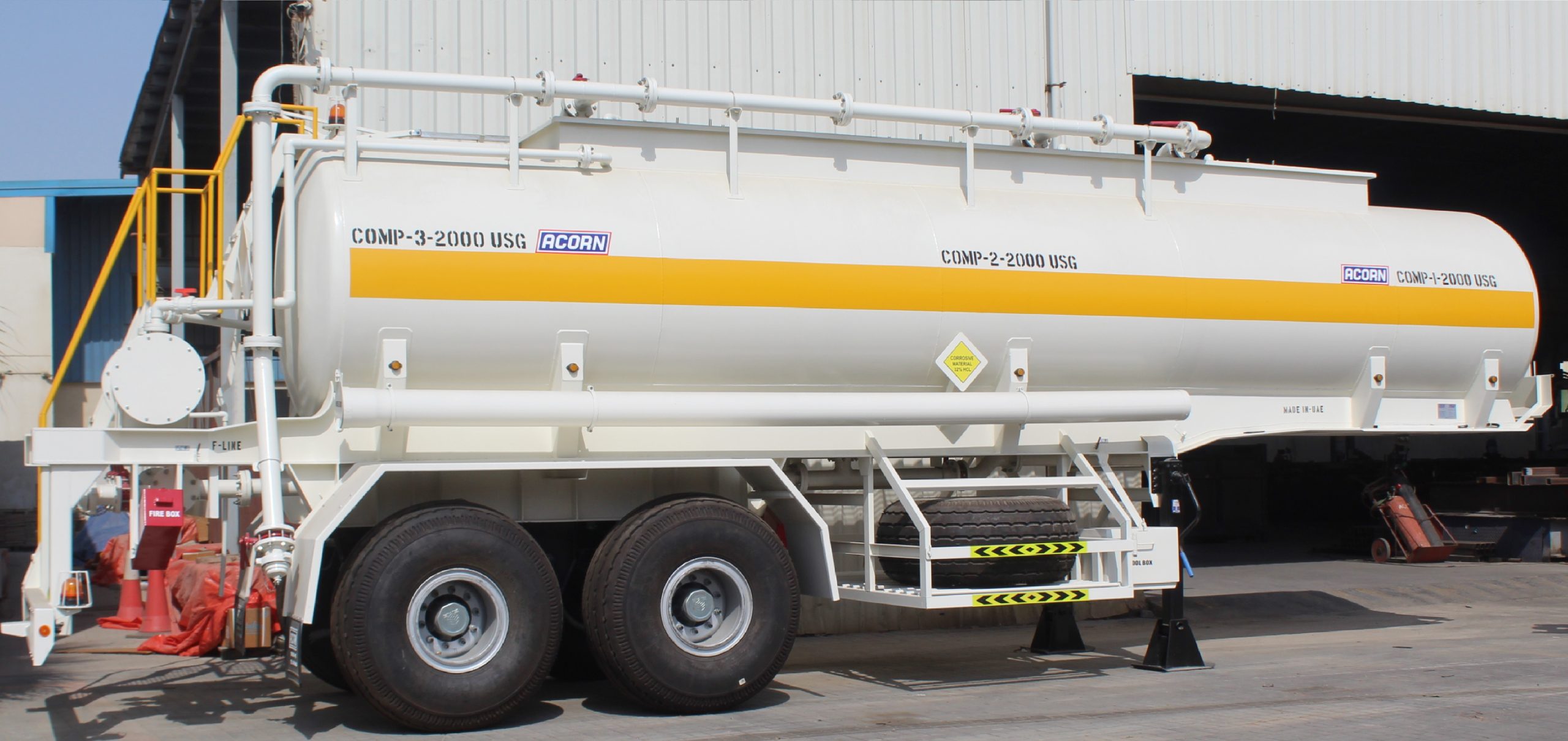

| Compartment |
Single or Multiple compartment |
| Application |
Suitable for HCL (Up to 32% concentration), Hypo, Caustic Soda, Fuel, and other chemicals. |
| Construction |
- Steel – SA 36, ST 52-3, Stainless Steel, Aluminum, Equivalent steel
- Axle – Tandem/Trident – Mechanical/Air suspension – Under slung/Over slung
- Tires – Subject to Load/Terrain
- Brake – Two line air brake system, Optional ABS/EBS/Emergency/Spring assisted brakes
|
| Pipe lines |
- Top or Bottom loading
- Fill line – Customized as per client requirements – With Valves & Unions
- Discharge line – Customized as per client requirements – With Valves & Unions
- Vapor Recovery line – Optional
|
| Man ways |
Quantity as per length/number of compartment for easy accessibility |
| Safety devices |
- Pressure & Vacuum relief valves
- Optical sensor to avoid spill over
- Emergency shut off
- Vent line & Spill over tray connected to optional scrubber tank
- Tank over turn protection
|
| Level Indicator |
- PVC dipstick with maple wood
- Sight glass – Magnetic level indicator
|
| Internal Coating |
- Epoxy primer, Coal tar epoxy for Water & Fuel application
- Derakane or Rubber lining for HCL and other highly corrosive chemicals
|
| External Finish |
Grit blasting followed by three coat paint system |
