| Specification |
Details |
| Product Name |

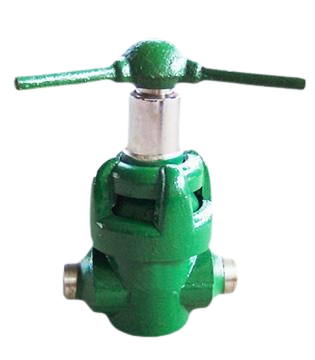

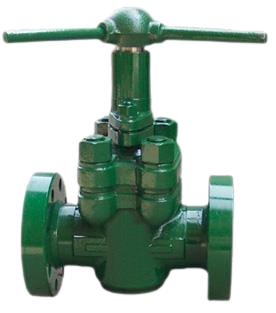

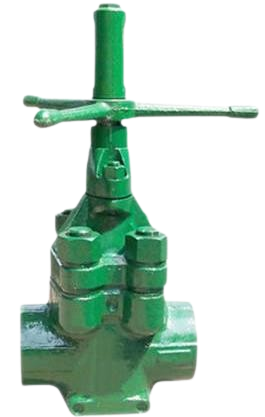

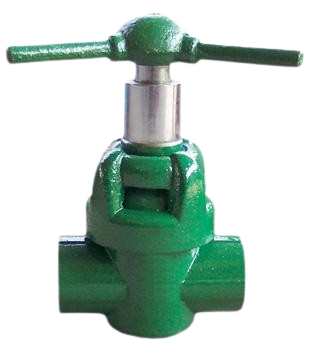

A. GESCO DM Style Mud Gate Valve |
| Application |
Used for mud, cement, fracturing, and drilling fluid control for mud systems. Applicable for Water, Cement, Mud, Fuel, Hazardous/Non-Hazardous Chemicals, etc. |
| Size |
DIN 25 to DIN 400 |
| Applicable Design |
API-600/602/603 |
| Type |
Mud Gate Valve, Solid Split/Flexible Wedge, Knife Gate, Parallel Disk, PVC |
| Working Pressure |
PN 10 to PN 250 |
| Temperature Range |
-45°C to 150°C |
| Flange |
ASME B16.5/DIN 3230/JIS B2212 |
| Operation |
Hand Wheel/Lever, Gear Operation |
| Features |
- Designed specifically for abrasive and erosive conditions
- Gates available: Nickel-plated carbon steel, Monel, Aluminum Bronze, or Stainless Steel
- Stainless or Carbon Steel Inserts with Nitrile or HNBR Elastomer
- Connection: Flange/Thread/Butt weld/Hammer Union
- Pressure ratings up to 5,000 psi for 2″, 3″, 4″, 5″ x 4″, and 6″ x 4″ Valve Sizes
- Working Temperature: -46°C to +121°C
- Sour Service Models to NACE MR-01-75
- Specification Level: PSL.1 – PSL3
- Performance Requirement: PRI – PR2
- Factory Pressure Tested in Accordance with API 6A
|
| Applications |
Mud pump line, standpipe manifolds, oil and gas pipelines, abrasive drilling mud system, corrosive water flood lines, cementing services, wellheads, well treating chemicals. |
| Port Pressure Ratings |
Full Port 2000psi, 3000psi & 5000psi WP |
