| Specification | Details |
|---|---|
| Capacity | 300–500 BBL |
| Type | Cylindrical / Rectangular / Customized |
| Application | Storage of Water, Fluid, HCL (32%) etc. |
| Construction | Steel – SA 36, 516 Gr.70, ST 52-3, Equivalent Steel |

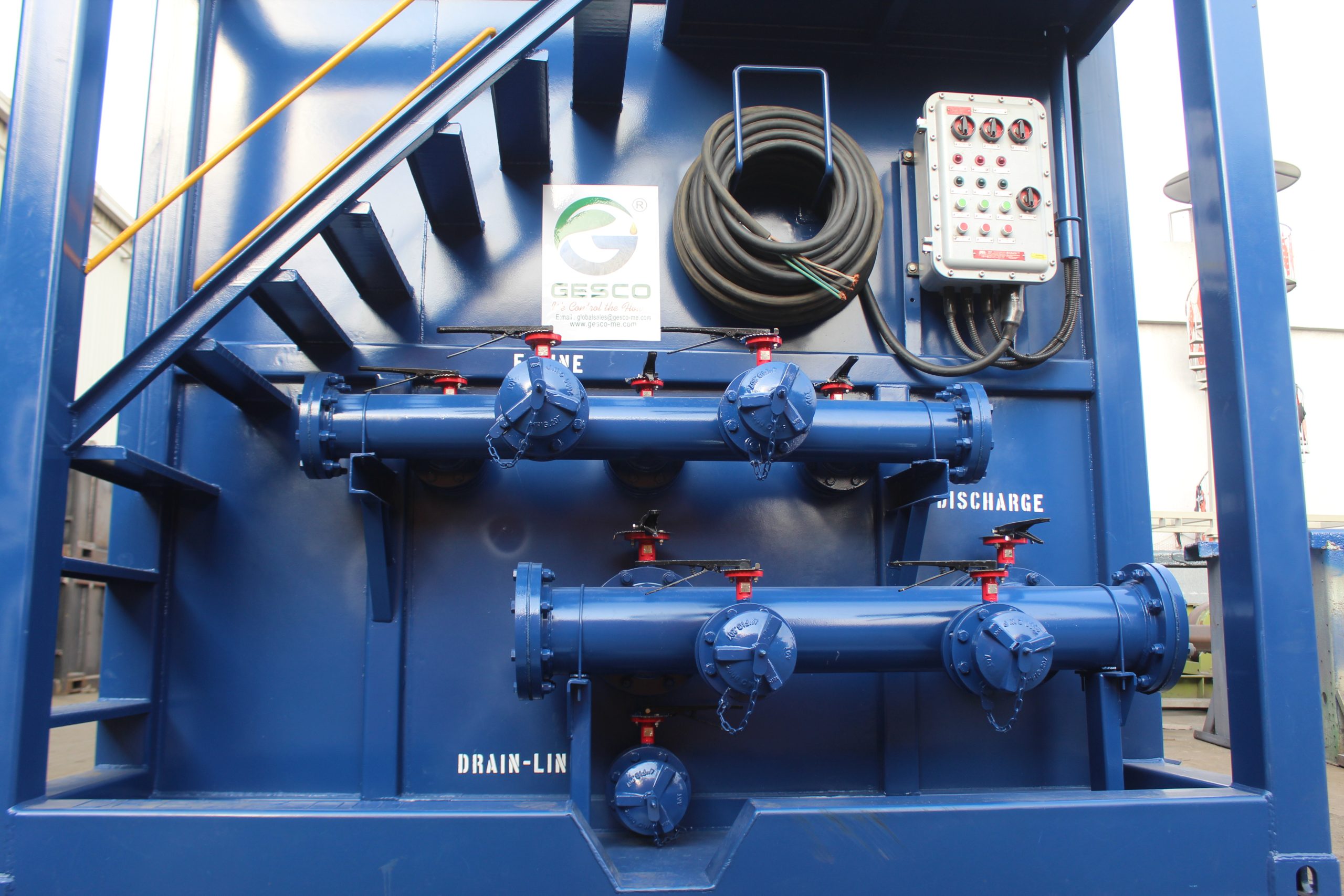

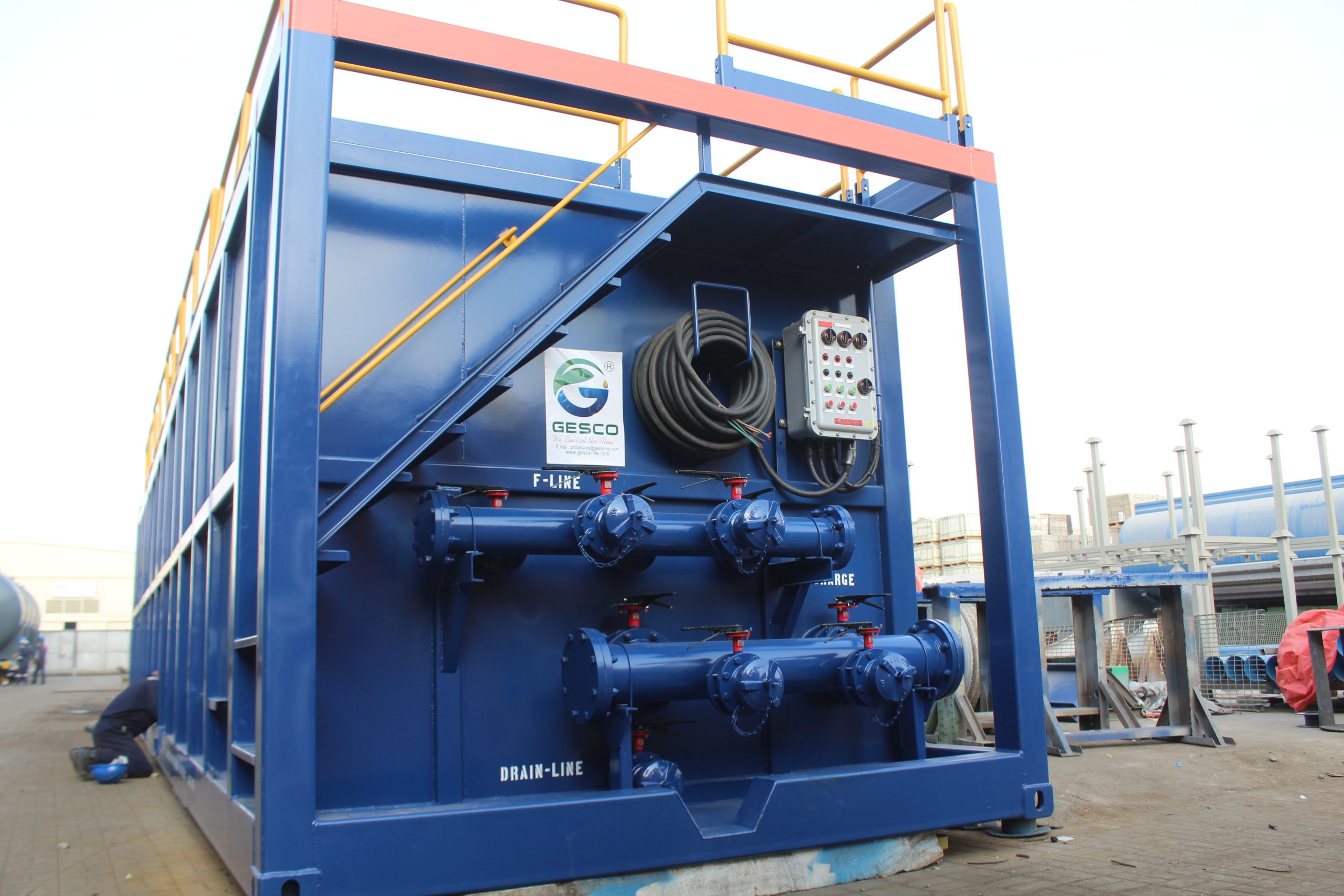

| Pipe Lines | Fill line – With Valves & Hammering Unions (One or Two, as per client requirements) Discharge Manifold (6”/8”/10”) – 2–4 outlets with Valves & Hammering Unions Vent line – One per compartment with Valves & Hammering Unions Drain line – One per compartment with Valves & Hammering Unions |
| Man Ways | At top for easy accessibility |
| Walkway | Walkway with foldable hand rail |
| Level Indicator | PVC dipstick with maple wood Sight glass – Magnetic level indicator |

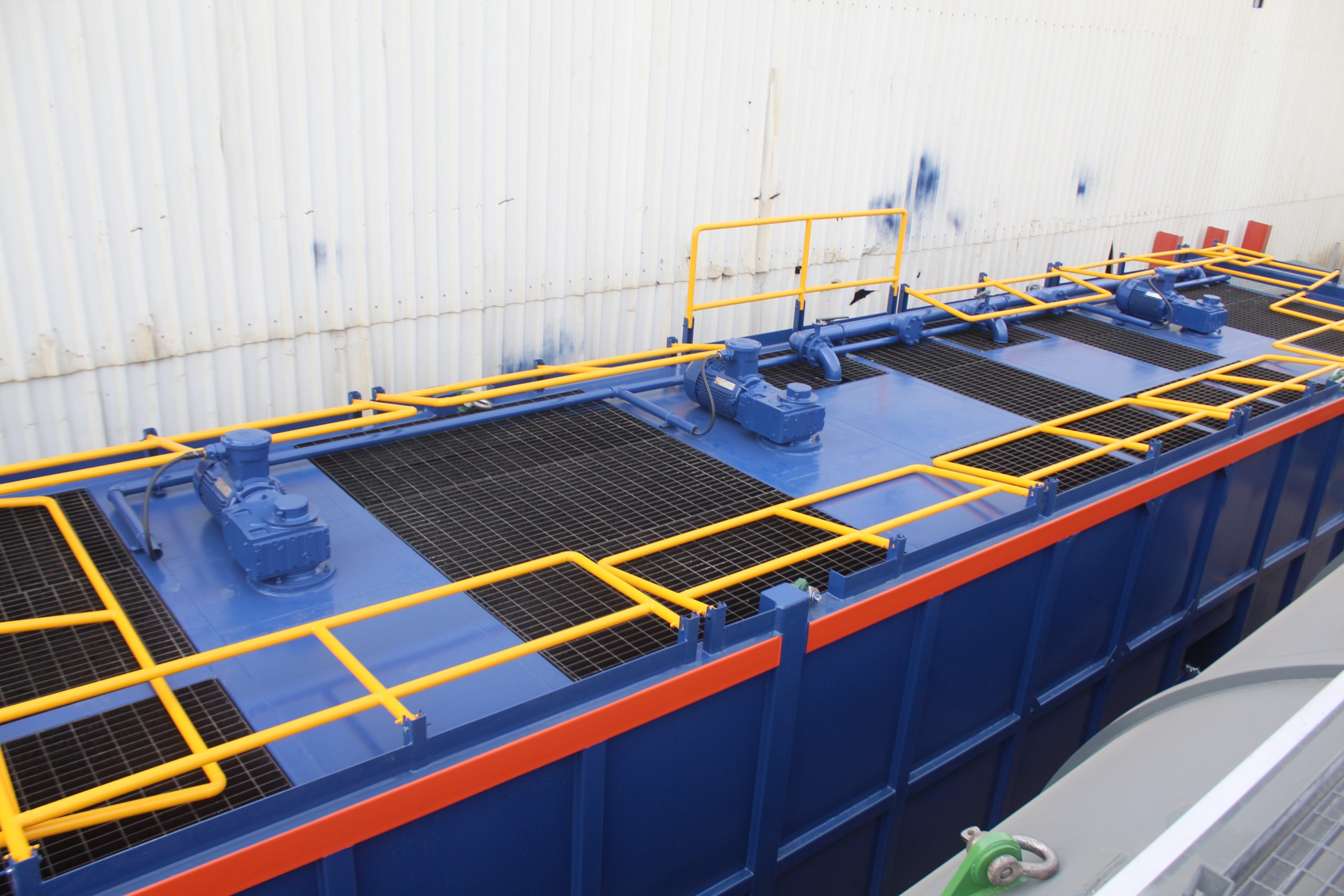

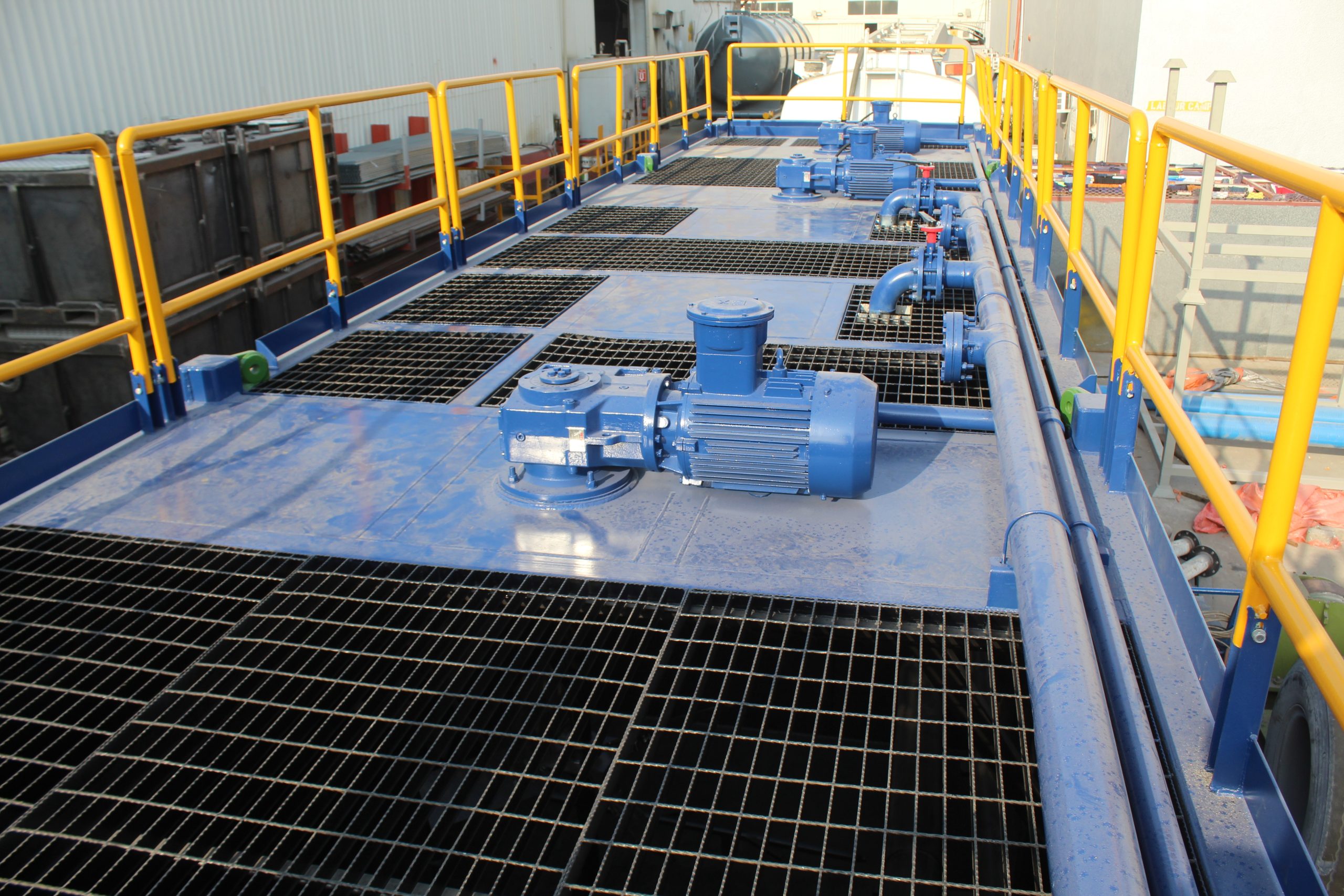

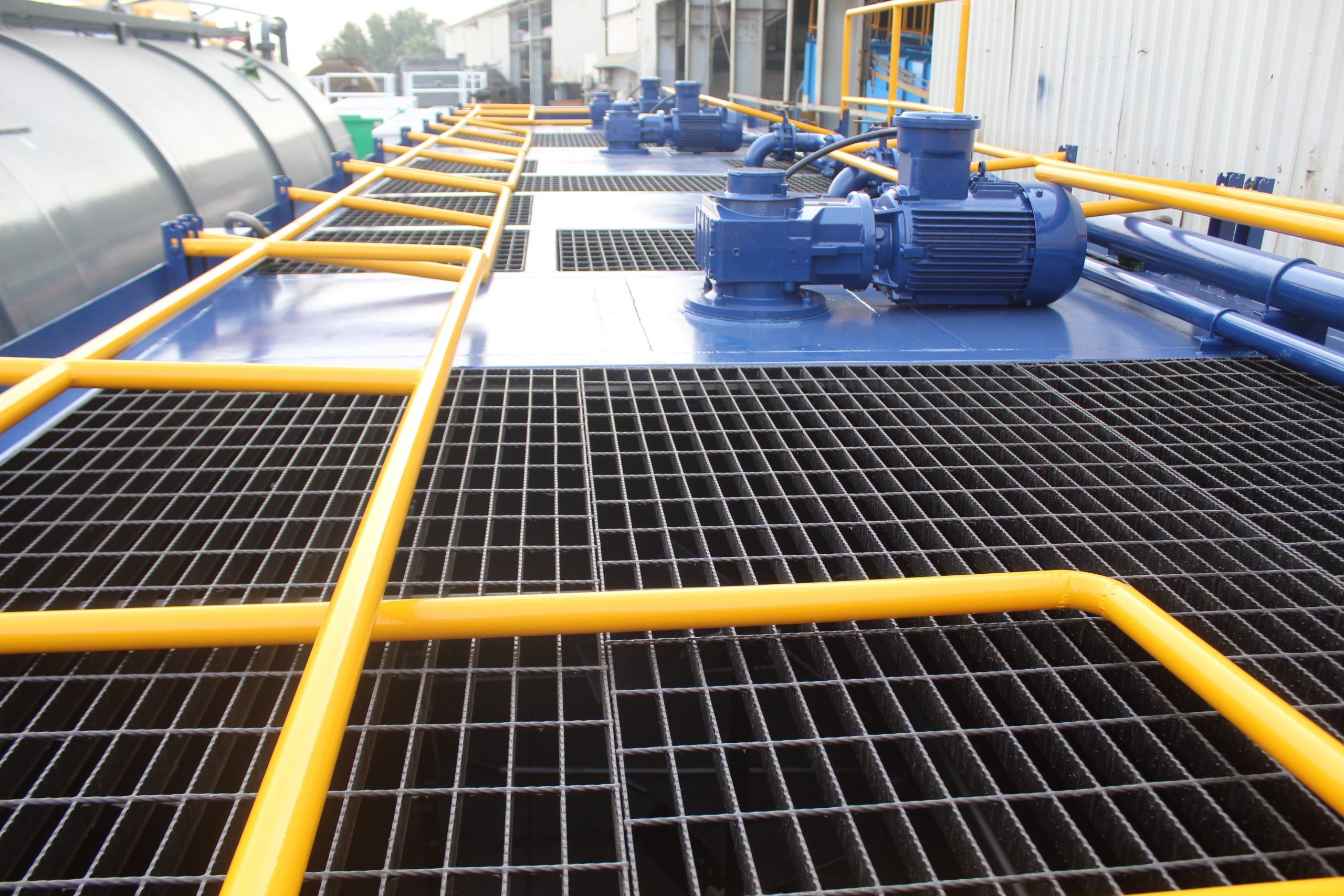

| Agitator (Optional) | 3x right angle bevel helical gearmotor, output speed of 56rpm Output flange Dia 450mm coupled with 15kW 1400rpm, 400/400V 50/60Hz S1 duty IP55 explosion proof electric motor |
| Control Panel (Optional) | Explosion proof control panel with VFD / DOL Starter, Emergency stop push button |
| Internal Coating | Epoxy primer, Coal tar epoxy for Water & Slurry applications Derakane or Rubber lining for HCL and other highly corrosive chemicals |
| External Finish | Grit blasting followed by three coat paint system |
-
