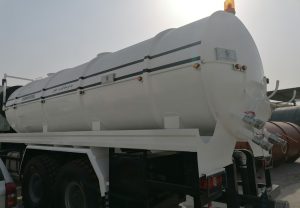

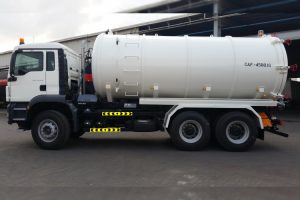

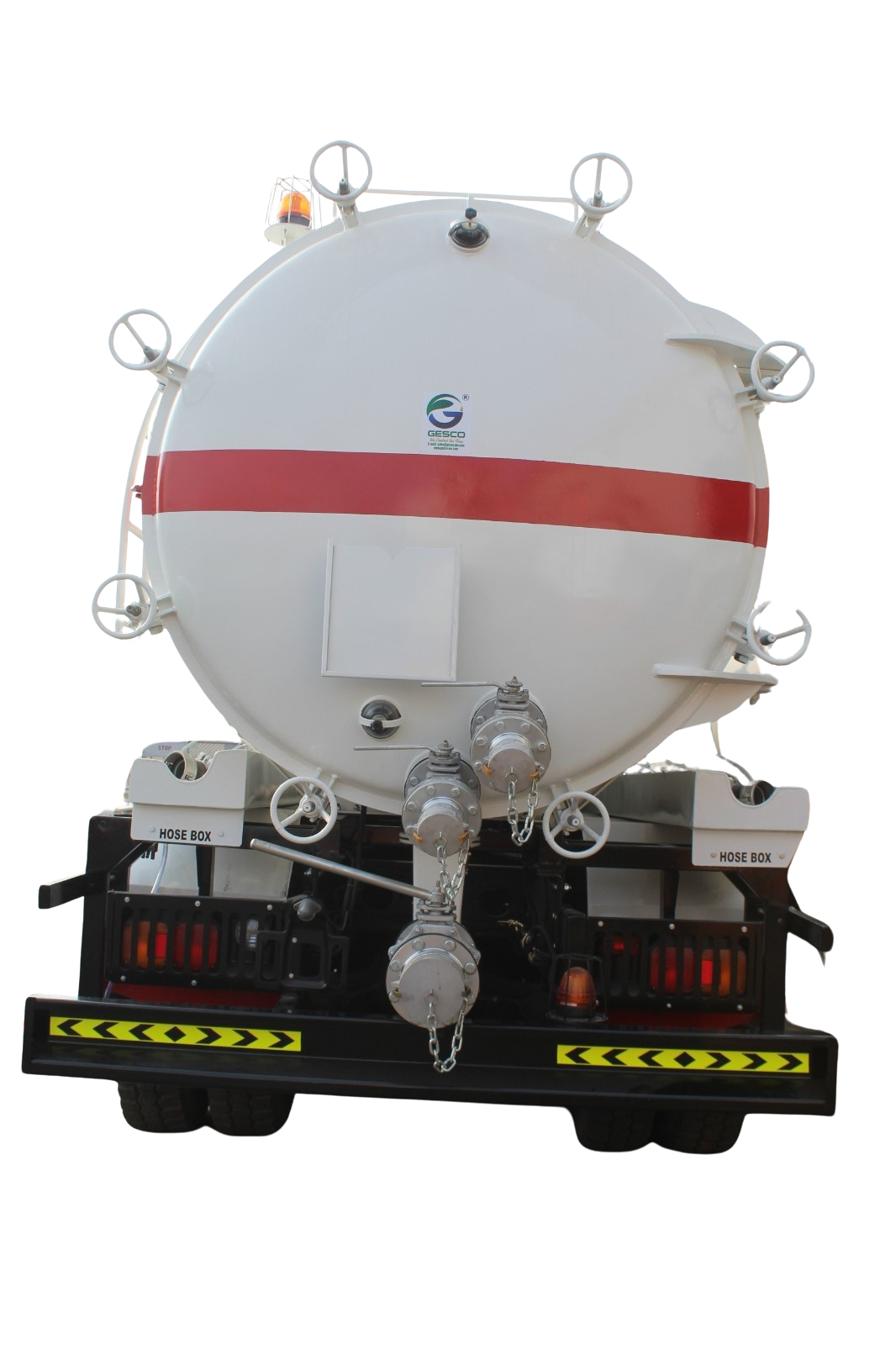

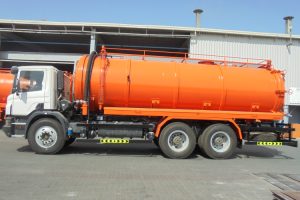

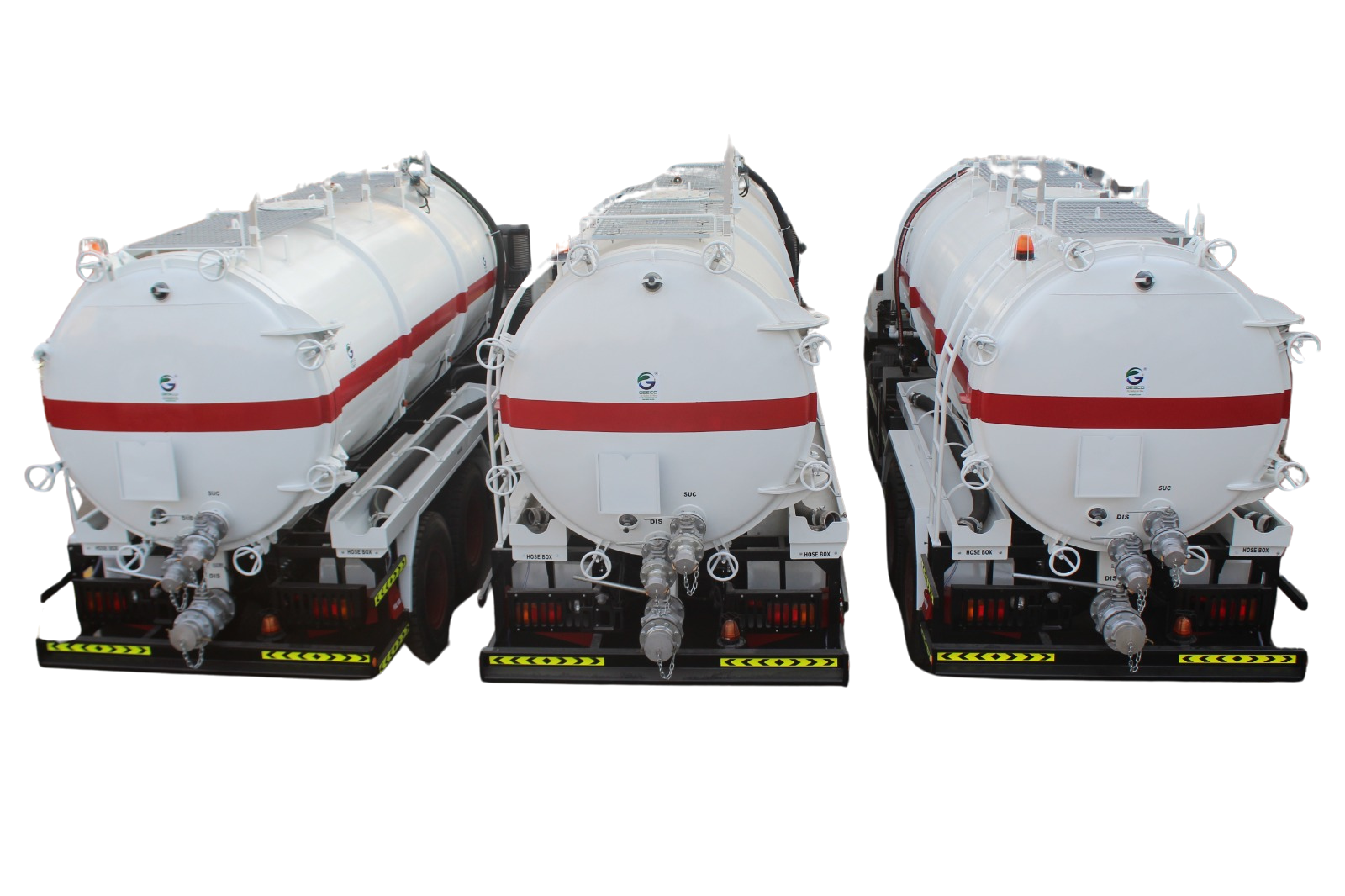

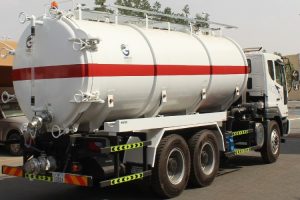

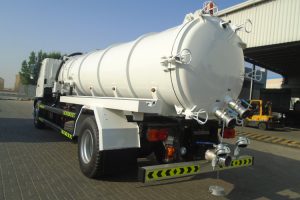

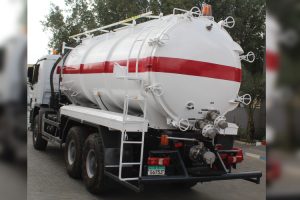

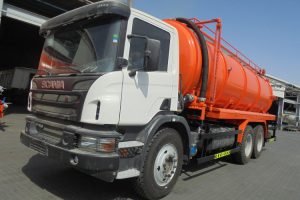

Vacuum / Sewage Tanker
| Specification | Details |
|---|---|
| Capacity | 1000 – 5000 IG |
| Application | For transportation of Sewage water, Treated water, etc. |
| Shape | Cylindrical with outer rings for stiffening |
| Construction | All welded steel construction – Steel – SA 36/ST 52-3/Equivalent steel |
| Electricals | Side lights, Reflectors, Reverse lights |
| Pump | PTO driven vacuum pump |
| Door |
|
| Safety Equipment |
|
| Accessories |
|
| Finish | Internal:
External:
|

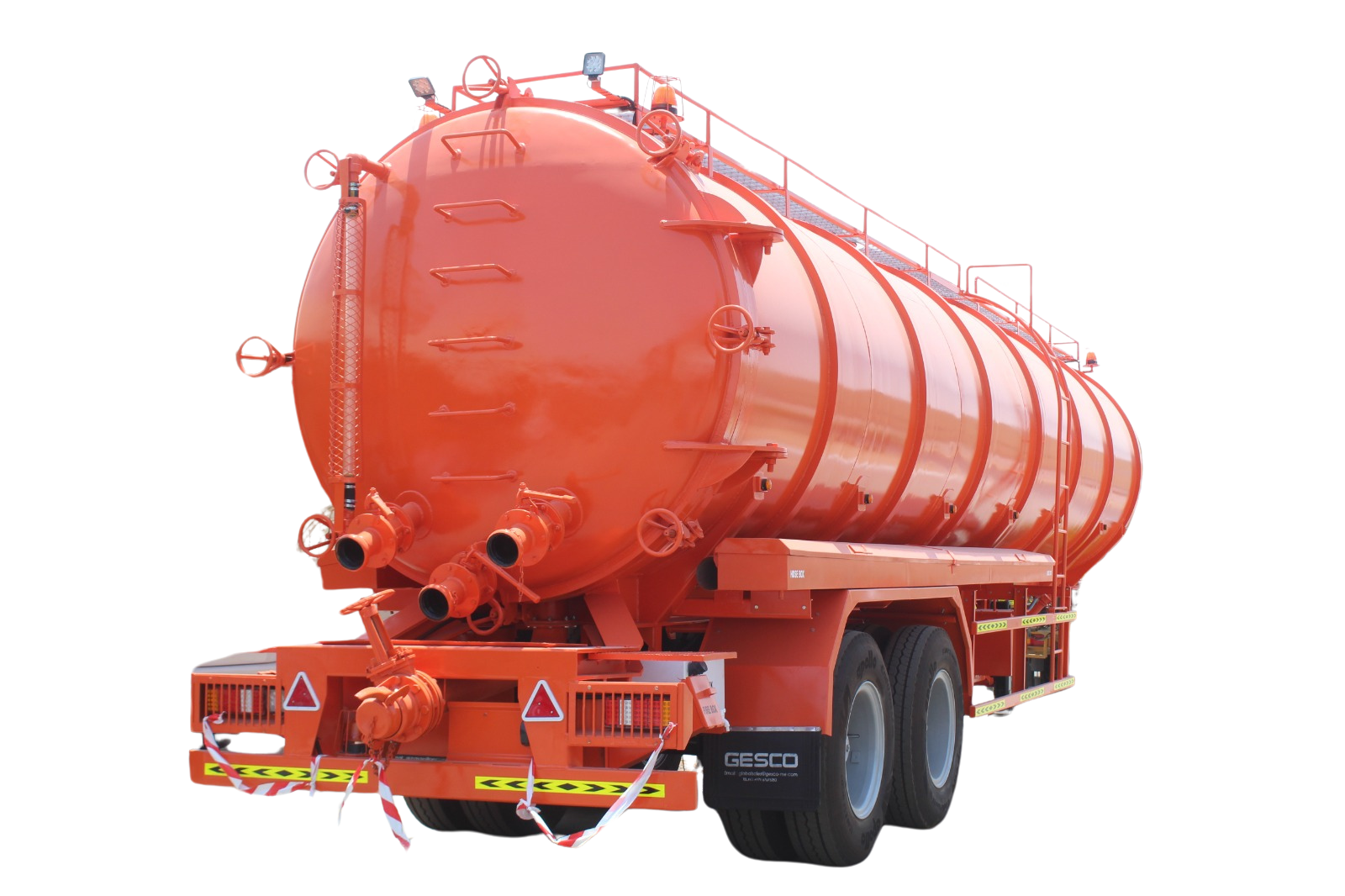

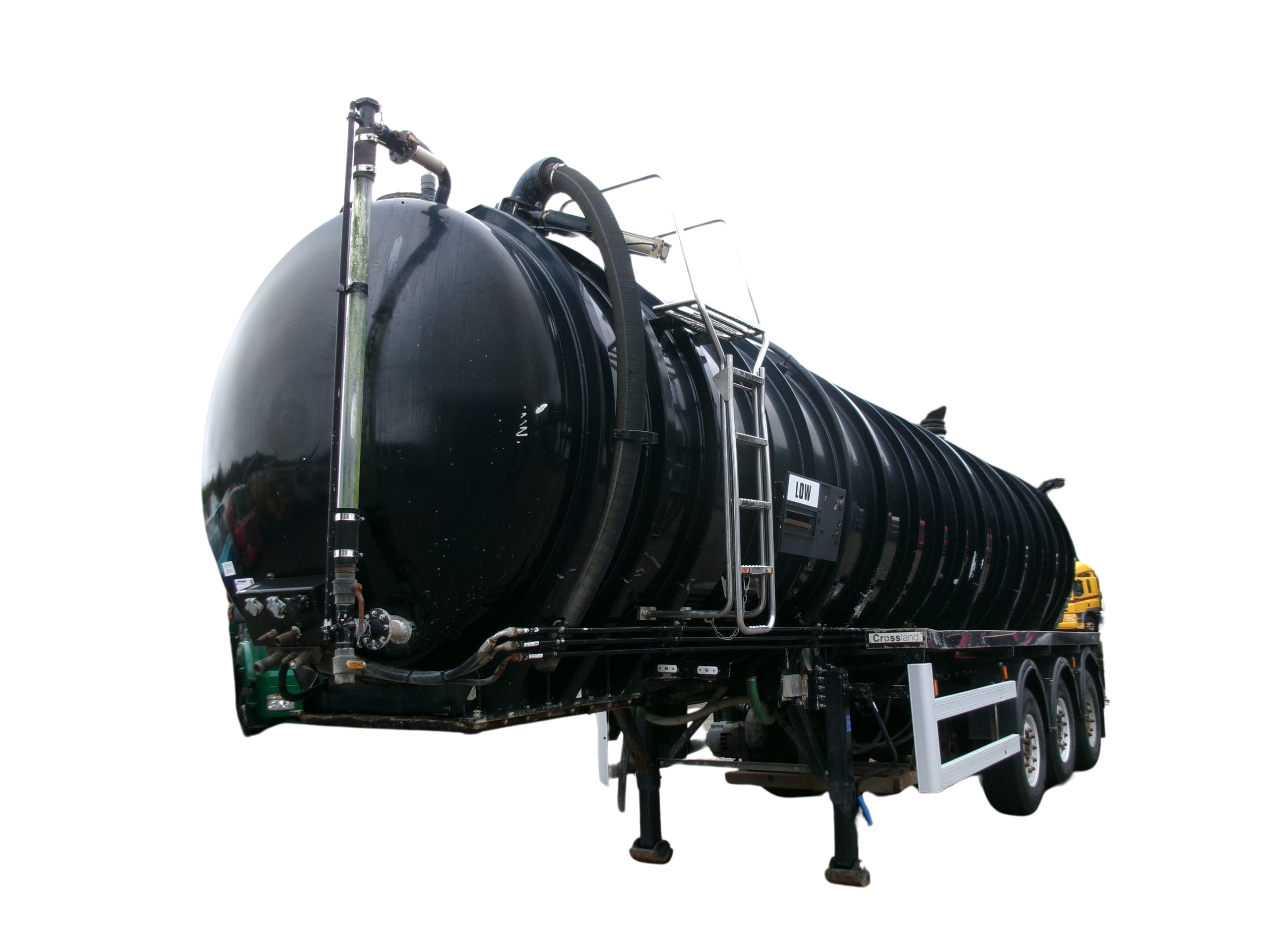

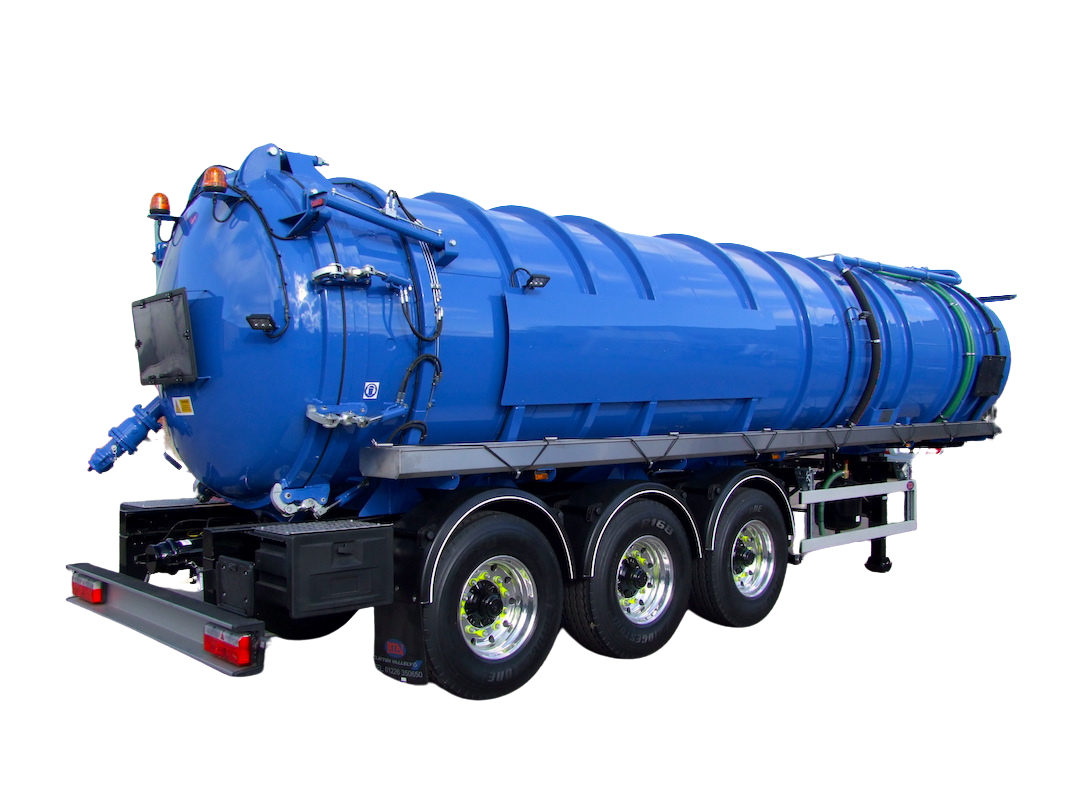

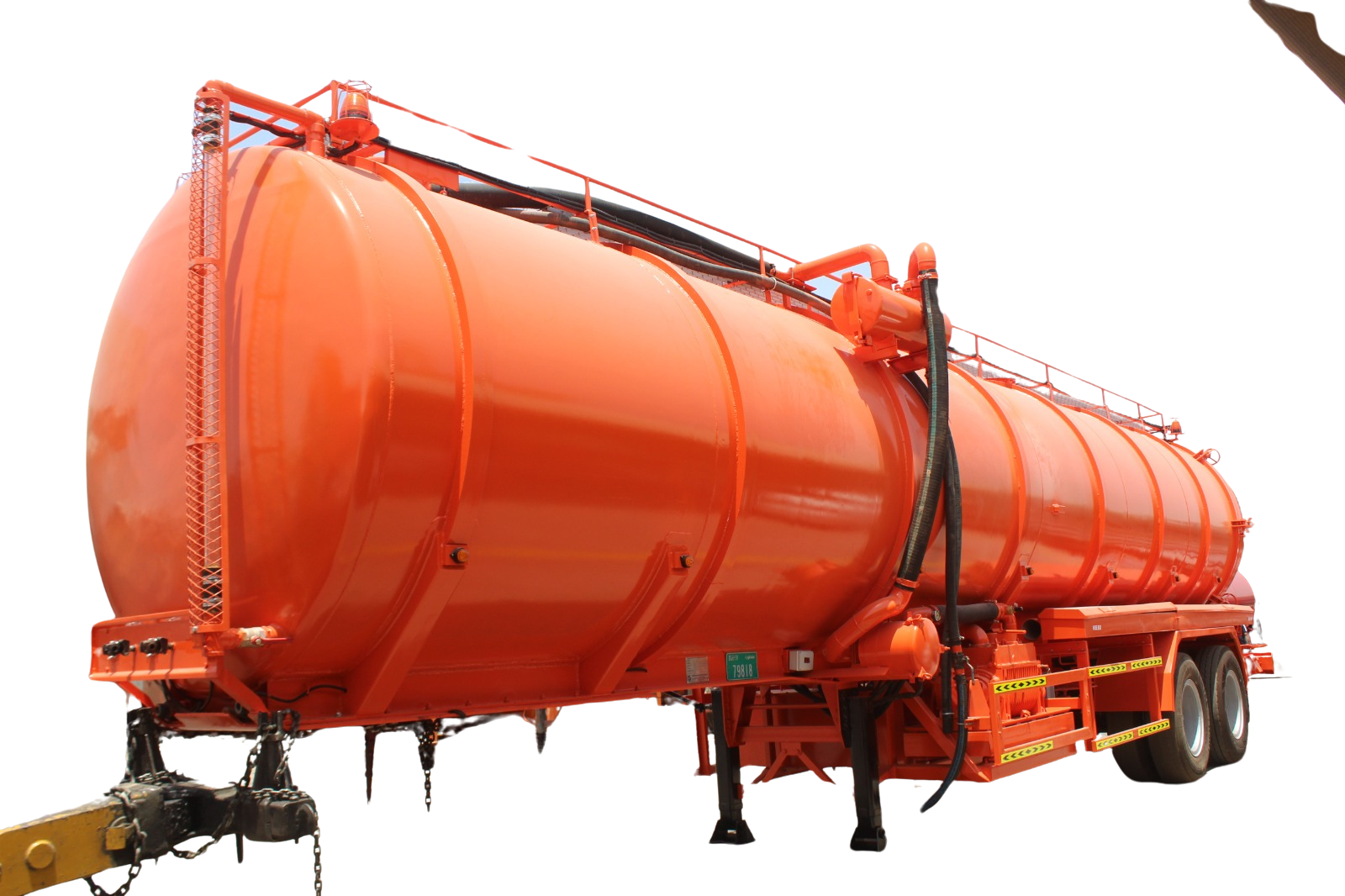

Vacuum / Sewage Trailer
| Specification | Details |
|---|---|
| Capacity | 6000 – 10000 IG |
| Application | For transportation of sewage water, treated water |
| Shape | Cylindrical with outer rings for stiffening |
| Pump | Trailer mounted – Pump with power pack (Diesel operated) PTO driven Pump – Mounted on prime mover |
| Door | Full open type – Hinges on driver side at rear – Secured with set of clamps. Sealed with neoprene rubber; greasing provision for clamp lubrication. |
| Safety Equipment | • Pressure & vacuum relief valve • Primary & secondary cut-off • Combination gauge (Pressure & Vacuum) |
| Construction | • All welded steel – SA 36 / ST 52-3 equivalent • Axle – Multi-leaf mechanical suspension (Tandem / Trident) • Tires – Twin tire fitment as per load/terrain • Brakes – Two-line air brake system with automatic load sensing valve • Landing Gear – Two-speed manual • King Pin – 2” or 3.5” interchangeable • Electricals – 7-pin 24V with sidelights, reflectors, and reverse lights |
| Accessories | • Level indicator – Sight glass • Optional 20” inspection manway • Spare wheel carrier for two tires • Side & rear anti-run bumper • Mudguards & mud flaps • Toolbox & GRP water tank • Hose box with fill & discharge hoses on both sides |
| Finish | Internal: – Grit blasting (SA 2.5) – Two coats Epoxy / Coal tar coating External: – Grit blasting (SA 2.5) – Epoxy primer followed by topcoat |
